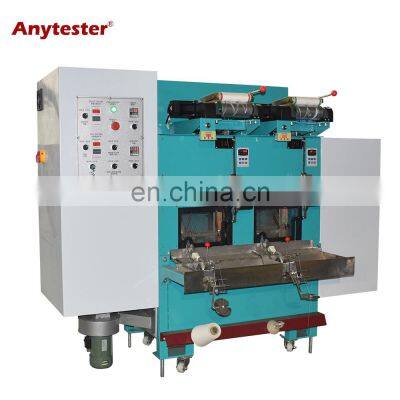

Lab single sizing machine with 2 Spindles

Product Description

Product Description
Product DescriptionAT240 Series Single Yarn Sizing Machine is suitable for yarn sizing of cotton, flax, silk, wool, synthetic filament, etc.As the textile develops in the direction of small quantity, diverse kind and prompt delivery, so our company has developed AT240 Series Yarn Sizing Machine on the increasing requirements on product samples. It is widely used in the sampling in the industries including wool spinning, cotton spinning, colored woven and natural silk etc.Detailed Images Model AT240Number of spindles 2, 4, 8, 12 or customizedSizing speed20~300m/mincontrolled by invertor and adjustable according to yarn kindHeating methodSteam heating or electric heating (optional) Applicable yarn density5~500tex, cotton, wool silk or chemical fiberMotor power of rotation frame0.18KW per spindle Motor power of grooved drum0.75KW per spindle Heating power of oast1.8KW per spindleMotor power of heat circulation Approx.1.lKWPower supplyAC380V 50Hz, three-phaseDimensions3100*850*1750mm for 4 spindle machine, adding 1,900 mm for each additional 4 spindles, no change for width and height.WeightN. T1000Kg. G.T 1100Kg for 6-spindle machineOverview of AT240Independent control of each spindle, digital displayof tension index and digital display of speed ofrotating frame and counting of length. And rotatingframe storing 160 turns of yarn on it to increase thedrying timeAutomatic Tension Controlsingle spindle control, the frequency controlleror steeples controller is used for cabbagerotational motor in drying room. The yarn guidecylinder is traced by the servo.MotorGrooved drum controlled by servo motor andits rotation speed is automatically adjustedaccording to the speed of rotating frame tocontrol the yarn tensionAutomatic Speed ControlGrooved drum controlled by servo motor and itsrotation speed is automatically adjustedaccording to the speed of rotating frame tocontrol the yarn tensionSensor & DetectorEquipped with yarn tension measuringdevice and yarn breaking detector whichmake the machine easy to operate and highefficient.Packing & DeliveryPackagingSize(cm)310(L) * 85(W) * 175 (D)Weight1100KgPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. Our CompanyHistorySince 1982 with more than 20 years' experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productContacting Us ERIC QINWebsiteMobile Phone+86 188 5510 5986Whatsapp+86 188 5510 5986Skype eric-qlkWechat+86 188 5510 5986
