Versatile Mini Rice Harvester Machine for All Rice Varieties

Product Description

Product Parameters

Model		4LZ-6
Horsepower		109HP
Dimensions(L*W*H)(mm)		5860*2620*2930
Weight(kg)		3785
Cutting width (mm)		2300
Track	Track specification (mm)	90*53chains*500
	Track gauge(mm)	1250
Cab type		Awning or AC Cab
Production efficiency	Productivity(hm²/h)	0.3-1
	Fuel consumption(L/hm²)	≤41
	Mini clearance(mm)	300
Thresher	Grain tank(m³)	2.2
	Threshing pattern	Longitudinal axial flow
	Grain unloading drum height(mm)	3700
	Threshing drum size(mm)	Φ620*2200

Detailed Photos

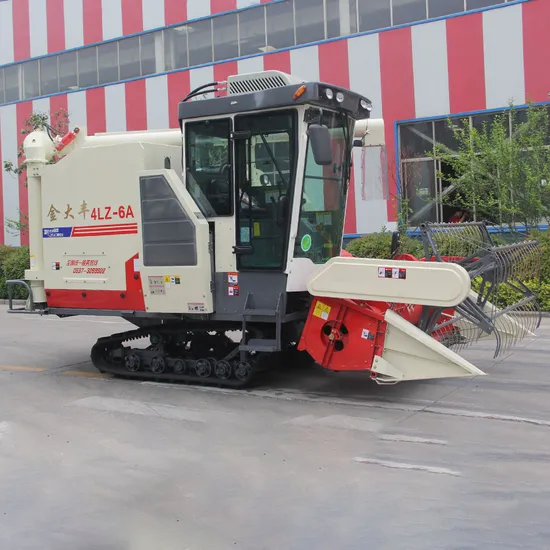

Model: 4LZ-6 This advanced type crawler grain harvester employs state-of-the-art longitudinal axis flow roller threshing separation technology, enabling efficient harvesting of rice and wheat. Additionally, it comes equipped with specialized devices designed for the seamless harvesting of rapeseed, corn, and millet, making it a truly versatile agricultural powerhouse.
Product Description
Explore the Intricacies: Dive deeper into the detailed technical specifications of the 4LZ-6 model, crafted for excellence and precision.
Engineered with precision, the machine can be optionally fitted with a plate type divider and a 'mouse cage' divider. This feature showcases an exceptional adaptability to diverse crops, particularly those inclined, minimizing header losses and optimizing harvest efficiency. The meticulously designed spring gear tube is shielded by a protective cover, expertly crafted to effectively prevent grass entanglement, ensuring seamless operation. Innovatively designed, the lifting and rotating header now boasts an extended bridge, elegantly solving the challenges of low-cutting headers for fallen crops and enhancing high-point passability. With the header blade guard tip bottom positioned 40 mm beneath the horizontal ground and a high point reaching 1000 mm, it offers unmatched operational efficiency. Experience an optimized bridge feed inlet, now featuring floating wheels that adjust effortlessly with the feeding amount, significantly enhancing conveyance passability and operational fluidity. Equipped for efficiency, the bridge includes a turn-over device designed to swiftly address and resolve blockage issues, ensuring uninterrupted performance. The grain separation chamber boasts an arc-shaped stainless steel plate at the feed opening, selected for its formidable strength and superior wear resistance, promising longevity and reliability. Harness the power of an efficient grain separation cleaning system, featuring a 2.0-meter grain roller. This is complemented by a cutting-edge cleaner fan and an adjustable angle fish scale clean screen, offering robust crop processing capabilities and effectively tackling challenges of poor feeding and excessive cleaning losses. The high clearance chassis excels with a minimum ground clearance of up to 330mm, significantly enhancing resistance to sinking. The optional chain feature further boosts water field throughput and adaptability, ensuring versatility across various terrains. Empowered by a renowned high-quality National III engine, the machine delivers substantial power, remarkable operational efficiency, and commendable fuel economy. Experience smooth operation with the original imported hydraulic transmission, paired with the 80 gearbox. Enjoy high-speed performance, agile steering, and superior maneuverability, making every task a breeze. The newly designed operator panel combines unobtrusive elegance with ergonomic comfort, enhancing user interaction. Waterproof electrical components offer longevity, while the recessed start switch is ingeniously designed to prevent accidental collisions or engine shutdowns. Two versatile straw processing methods are available, providing adaptability to meet the diverse needs of different regions with remarkable ease. Unlock versatility with optional harvesting devices for rape seed, corn, and millet. This feature empowers the machine with robust adaptability, realizing multiple uses with a single unit, catering to a wide array of agricultural demands.
Company Profile
Shandong King Machinery Co., Ltd. is a prestigious national high-tech enterprise dedicated to the cutting-edge research and development, manufacturing, and international exportation of top-tier agricultural machinery. Our esteemed product lineup includes the latest in corn harvesters, state-of-the-art grain combine harvesters, innovative soybean harvesters, efficient peanut harvesters, and versatile rice harvesters, complemented by our robust tractors and essential agricultural auxiliary tools.
Spanning an impressive 300,000 square meters, our company boasts a dedicated workforce of nearly 1,000 skilled employees and brings 30 years of unrivaled experience in agricultural machinery production. We pride ourselves on delivering unparalleled quality services, with our superior products reaching over 30 countries and regions, including Russia, South America, Central Asia, Southeast Asia, and Africa. With an impressive portfolio of more than 70 patents for scientific and technological inventions, our commitment to excellence is evident in our strategic management and innovative R&D capabilities. We consistently innovate and tailor our designs to meet customer demands, producing a diverse range of models that have garnered universal acclaim from our clients both domestically and internationally. Celebrated for our exceptional product quality, independent R&D prowess, and flawless after-sales support, our mission is to 'Serve customers and make progress together!'. Looking ahead, we are resolutely committed to advancing in the realm of agricultural machinery and equipment, continuing to deliver outstanding products and services worldwide, and providing farmers with unrivaled planting support. Our ambition is to lead as pioneers in the research, development, and production of a wide array of agricultural machinery, positioning ourselves as the undisputed KING of agricultural machinery.
Harnessing the most cutting-edge technology, we ensure unparalleled excellence in our products, setting new industry standards for quality.
Our extensive array of diverse choices is meticulously crafted to cater to the unique and varying needs of our esteemed customers, offering tailored solutions for every requirement.
Backed by an exceptionally skilled technical team, we provide the most timely, reliable, and professional technical services, ensuring customer satisfaction and optimal performance.
