Customized Production Sealed Mixer W Type Double Cone Mixer

Product Description

Product Description
The working principle of the double cone mixer is to drive the mixing tank to rotate through the motor and the reducer through the gear transmission, and add the prepared various powders into the mixer tank. The rotation of the tank makes the materials repeatedly aggregate and separate by gravity and centrifugal force, so as to achieve the effect of uniform mixing. The mixed materials are discharged from the discharge port by their own weight.
The machine has a compact structure: the equipment structure is compact and occupies a small area.
Easy to operate: the operation process can be automatically controlled and the labor intensity is low.
Good mixing effect: high mixing uniformity, suitable for mixing a variety of materials.
Wide range of application: suitable for pharmaceutical, chemical, food, feed and other industries
Equipment composition

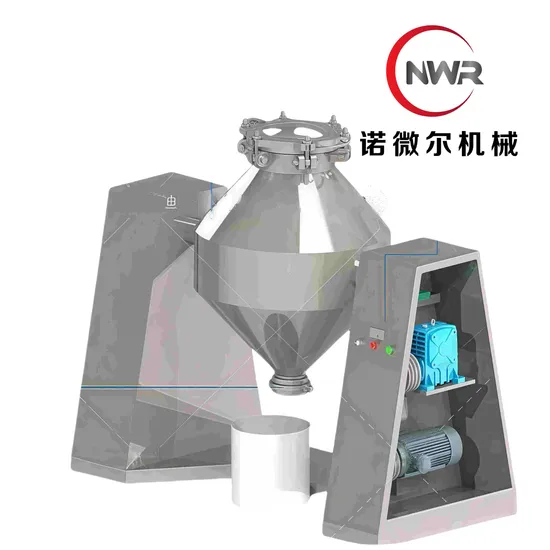

The double cone mixer is mainly composed of the following parts:
Tank: A container made of steel plate, with a short cylinder set between two cones, which is convenient for discharging and is designed to be 90° or 75°. The inlet and outlet are equipped with pneumatic valves or electric butterfly valves.
Drive device: It is composed of an electric motor, a reducer and a transmission gear. The number of revolutions of the motor can be adjusted within a certain range, and the operation process can be automatically controlled.
Slip ring box: A device for power distribution, from which the power lines of the electrical equipment attached to the rotating tank are input.
Support stand: A metal structure frame used to support the tank and transmission device.
Product Parameters

Model	WH-180	WH-300	WH-500	WH-1000	WH-1500	WH-2000	WH-2500	WH-3000	WH-4000
Full olume(m)	0.18	0.3	0.5	1.0	1.5	2	2.5	3.0	4.0
Productive capacity(kg/time)	40	80	100	200	300	400	500	600	800
Mixing time(min)	4-8	6-10	6-10	6-10	6-10	6-10	6-10	6-10	6-10
Barrel rotation speed(rpm)	12	12	12	12	12	12	12	7.8	7.8
power(kw)	1.1	1.1	2.2	4	4	7.5	7.5	7.5	11
Total height of rotation(mm)	1850	1850	2450	3000	3100	3700	3790	3700	3730
Weight(kg)	280	320	550	950	1020	1200	2040	2500	3200
Dimensions(LxWxH)(mm)	1400x800 x1850	1685x800 X1850	1910x800 X1940	2765x1500 x2370	2960x1500 x2480	3160x1900 x3500	3386x1900 x3560	4450x2200 x3600	4750x2500 x3680

Application field
Company Profile
Qingdao Norwell Machinery Equipment Co., Ltd. is a technical enterprise integrating research and development, design, production, domestic and foreign sales and after-sales service. The company specializes in the production and sales of air mill, mechanical mill, ultrafine mill, hammer mill, needle mill, jaw crusher, vacuum conveying system, mechanical conveying system, dust-free feeding system, mixing machine and other powder deep processing equipment. The company has introduced and mastered the international advanced powder processing and production technology, so that the domestic ultrafine grinding technology has achieved a qualitative leap, in the leading position in the country, the classification accuracy can reach D100 < 5 microns, D97 < 2 microns, and the technology is at the international synchronous level.
The company has the industry's top authoritative experts to join, and cooperate with a number of domestic colleges and universities and research institutes, "do not seek full use, but seek to use, inclusive, win-win cooperation" talent management concept makes my company become the powder equipment industry to gather talent highland. The company has a domestic advanced experimental platform, engaged in powder physical property testing, basic theoretical research, large-scale engineering experiments and academic exchanges, and has a strong machining capability and perfect quality management system, making the company a technology-oriented enterprise integrating production, learning and research.
Our corporate purpose is to commit to the development of future material technology and advanced particle handling technology. Our business philosophy is not only to provide customers with domestic first-class powder equipment, but more importantly, to provide customers with tailored overall solutions - ultra-refined, functional, intelligent, low carbon, energy saving, environmental protection... This is the mission and responsibility given to us by The Times and customers.
The values that the company believes in are to create value for customers and contribute love to society. Common values are a solid foundation for maintaining the stable development of the team, building a good relationship of trust with customers, and gaining social recognition.
At present, the mill produced by our company has been widely used in medicine, food, fine chemical, mineral and other industries, equipment in line with GMP, C-GMP and FDA certification standards.
Our Advantages
Our company has a professional experimental team, design team, production team, according to customer requirements for different materials to test the machine, according to the actual situation to match the best model, for the corresponding material experiment issued an experiment report, according to customer requirements to design the most perfect selection scheme. Under the premise of meeting the production requirements, to achieve the most effective energy saving and environmental protection, to create more profits for each customer, save more costs.Our company will strictly test the equipment before leaving the factory, and debug the equipment in the factory to ensure that the equipment is perfect, easy to install after arriving at the customer site, and put into production at the fastest speed.Material analysisGrain size distribution diagram
Particle size ratio data After Sales Service
1. Provide relevant materials and drawings required by Party A.
2, provide small-scale process experiment, in order to select the best process and equipment.
3. Assist Party A in equipment selection.
4. Design equipment installation methods according to room drawings provided by Party A.
5. After the equipment is shipped to the customer's factory, we send engineers to guide the installation by video
The customer technical personnel master the process principle and the adjustment technology of production parameters
Customer operators can independently operate, maintain and monitor production
Customer maintenance personnel understand the structure and working principle of the main equipment
6. Provide relevant information required.
7, the warranty period of 1 year (except for wearing parts), if there is any non-human damage, we free repair or replacement parts. If you have any technical problems, we will give you an immediate reply after receiving the notice from the customer.
8. During the warranty period, in case of failure due to the defect of the equipment itself, we promise to replace the defective equipment or parts free of charge within 30 days after receiving the notice from the demander.
9, the following circumstances during the warranty period will not enjoy free warranty service, the need for related maintenance costs
(1)Damage caused by the user's failure to use, maintain and maintain the product according to the requirements of the user manual;
(2) Software and hardware damage or failure caused by improper operation;
(3) Without the permission of our company, disassemble machine parts or adjust the working parameters of the system at will, resulting in personnel injury or abnormal work of the machine;
(4) Damage or failure of the machine caused by the use of parts other than our company;
(5)Damage caused by force majeure;
10. Out-of-warranty service: When the equipment exceeds the warranty period and needs to be repaired, we only charge the cost of service and the cost of replacement parts.
11, spare parts (including imported parts) to ensure timely preferential supply.
12, regular free return visit.
13. Provide effective technical support and consultation for a long time; The buyer will be kept informed of technical improvements.
