plastic PP PE mulching film recycling washing line machine

Product Description

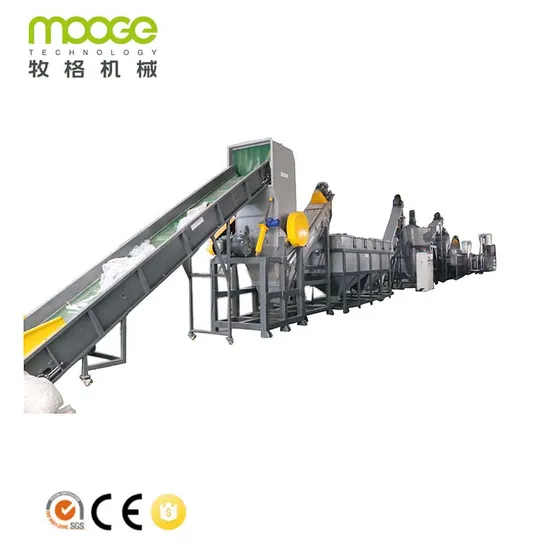

plastic PP PE mulching film recycling washing line machine
plastic PP PE mulching film recycling washing line machine is widely used to treat PP/PE plastic waste mixed material into clean film flakes,which include waste PP woven bags,plastic film, agricultural film, plastic bags, plastic garbage. After films cleaned, you can make them to be granules with next process which is called pelletizing line.This production line is high automatic operating and save labor cost and low after maintenance. We can customize make the line according to your requirpment.
We also have plastic film pelletizing line if need please contact with me.

Line Components List:

S/N	Item Name	Function/Remark
1	Conveyor Belt	Feeding the film into crusher machine
2	Wet Crusher	Crushing the material into small size
3	Friction Washing loader Machine	Washing out the sand, soil and loading the material
4	Floating Washing Tank	Floating washing separate the sand,soil and other dirties
5	Friction Washing loader Machine	Washing out the sand, soil and loading the material
6	Film Dewatering Machine	Remove the water from the material
7	Hot Air Dryer	Drying the flakes
8	Collecting Silo	Collecting material
9	Electricity Control box	Control the line on/off

Technical Data:

Model	Capacity (kg/hr)	Installed Power (KW)	Hot Washing	Water Supply (m3/hr )	Manpower (person)	Area Required (L*W*H)
ME-300	300	120	Optional	4-5	2-3	23mx5mx3.5m
ME-500	500	185	Optional	5-7	2-3	25mx6mx4.5m
ME-1000	1000	270	Optional	8-10	4-5	40mx6mx5.5m

Conveyor Belt Crusher Machine Loading material into crusher machine Crushing the film bag into small piece, wet working with water, can also choose shredder instead
Friction washer loader machine Floating washing tank Washing with water to remove dirty and loading up material Washing out the dirty from the film or bags material by paddles
Dewatering Machine Hot air dryer and silo
Remove the water out from the material With hot air further drying the material

Hot washing tank (Optional) Squeezer pelletizer machine (Optional)

With hot water to remove the oil and glue and other dirty Drying washed plastic scrap and make it to granules
Packaging & Shipping
For the loose cargo we will packing by wooden box
For the full container loading we are packing the machine by film and some on pallet accordingly
We can shipping the goods by air or by sea
We will send pictures of cargo loading to our client to check and keep recording
We can send cargo to client's warehouse to loading
Our Services
• Pre-sale: we given client the details technician offer, sign the sales contract etc.
• In-sales: we supply the details layout, installation instruction, technician support for the clients.
• After sales: we arrange engineer to install the machinery and training the workers for client.
• We have 24hours team to solve the after sales problem.
• We have free spare parts with the machine.
• We supply long term spare parts for every customer.
• We always up date the new technology to every customer.
FAQ
1- How to choose proper products you want?
• Please tell us as detail as what you want?
• What's your raw material it is?
• What's the final products you want to produce?
• What capacity you want it performance?
2- How to control the quality?
• We have technical, engineer team design the sample machinery before enter into market
• Production QC team ensure the machine manufacturing quality
• We will running every machine after finished before shipment
• Optional choose by client running the machinery by material
if any question please contact with me anytime freely.
Our company is near Shanghai welcome to visit!
