24GHz Intruder Alarm for Wide Area Security and Protection Solutions

24GHz Intruder Alarm for Wide Area Security and Protection Solutions

US$1.00 1 Piece (MOQ)

Basic Info.

Model NO.
TXPR200-W
Type
Industry Alarm
Application
Industry, Outdoor Intrusion
Usage
Outdoor Intrusion
Certification
CE, ISO, FCC, RoHS
Target Classification
Human, Vehicle, Animal
Network
TCP/IP
Frequency Band
24GHz
Effective Field of View (Horizontal)
120 Degrees
Detection Range (Human)
250m
Detection Range (Vehicle)
350m
Simutaneous Tracking
32
Power Supply
12VDC Poe
Radar Type
Fmcw
Transport Package
Carton, Box
Specification
300*130*50mm
Trademark
XIPHOS
Origin
China
Production Capacity
100 Sets/ Week

Product Description

24GHz Millimeter Wave Radar Sensor for Cutting-Edge Perimeter & Wide Area Security Protection
Product Description Perimeter Surveillance Radar:
This state-of-the-art product utilizes MIMO technology and low-power FMCW radar to deliver exceptional perimeter security. Boasting high detection probability, it precisely identifies intrusion location and speed, even at ultra-slow velocities. Our smart algorithms and deep learning capabilities dramatically reduce false alarms from environmental elements such as trees and bushes. Versatile in operation, it can function independently or integrate seamlessly into third-party platforms.
Engineered to oversee vast territories, the ground surveillance radar excels at intrusion prevention. It offers an impressive horizontal field of view up to 120 degrees and vertical coverage up to 20 degrees. With a detection range exceeding 250 meters for humans and 350 meters for vehicles, this radar's superior sensitivity ensures accurate data on distance, angle, speed, and target type.
Embedded with an AI algorithm, the radar learns the terrain, expertly classifying targets as human, vehicle, or other, thereby minimizing false detections. The intuitive radar WEB configuration allows customization of multiple alarm and blind zones. This radar serves as a potent intrusion detector within alarm systems and can trigger camera systems for enhanced surveillance.

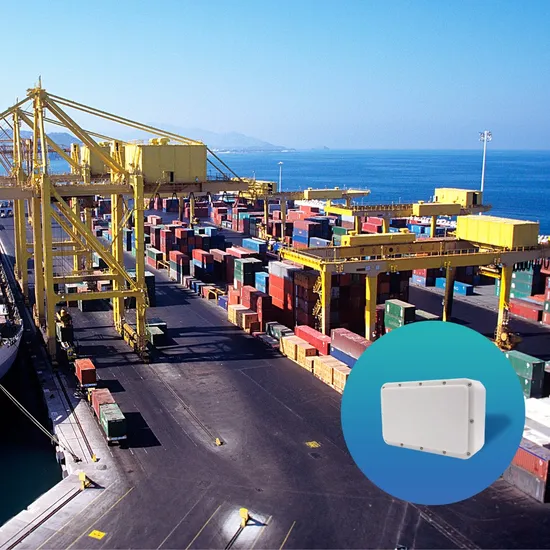

Compared to traditional perimeter intrusion technologies, our radar stands out for its exceptional reliability in adverse weather conditions such as rain, snow, fog, and during nighttime. Providing round-the-clock protection, it effectively reduces false alarms. Trusted globally, this radar technology is safeguarding perimeters at airports, harbors, solar farms, borders, and more.

Features:
--Revolutionary Radar AI-video technology and multi-stage decision-making to enhance situational awareness.
--Sophisticated deep learning algorithms for intelligent target classification.
--State-of-the-art mmWave MIMO radar ensures continuous monitoring, even in adverse weather like heavy fog or snow.
--Precision intrusion detection with an impressively low false alert rate.
--Unyielding protection in all weather conditions, day and night.
--User-friendly design ensures easy installation and operation.
Specifications:
Model TXPR200-W
Radar Type Frequency Modulated Continuous Wave (FMCW)
Frequency Band 24GHz
Refresh Rate 10Hz
Detection Range (Human) up to 250m (820ft)
Detection Range (Vehicle) up to 350m (1148ft)
Detectable Target Velocity 0.05-30m/s (0.16-98.4ft/s)
Effective Field of View (Horizontal) ±60°
Effective field of view (Vertical) ±10°
Simutaneous Tracking 32
Distance Accuracy ±1m (±3.3ft)
Angle Accuracy ±1°
Range Resolution 1.5m (4.9ft)
Alarm Output NO/NC Relay *1;GPIO *1
Operating System Built-in Linux
Communication Interface Ethernet & RS485
Power Supply DC 12V 2A / POE
Power Consumption 15W
Operating Temperature -40 ~ 70ºC (-40 ~ 158ºF)
Dimension 300*130*50mm (11.8*5.1*2in)
Weight 1.64kg (3.6lb)
Installation Height 1.5 ~ 4m (4.9 ~ 13.1ft)
Certification CE, FCC


Our perimeter security alarm software expertly manages multiple surveillance terminals, AI-video boxes, and security radars integrated with video cameras, forming a cohesive defense network. As the central hub, our management platform software orchestrates the entire perimeter security system. Upon detecting intruders in alarm zones, the radar sensor actively pinpoints intrusion locations, leverages AI vision for precise identification, documents the intrusion, and promptly alerts the management platform, ensuring comprehensive, three-dimensional monitoring and proactive perimeter protection.
