Welding Machine Fiber Laser Welder Handheld Laser Welder for Sale Laser Welding Machine for Metal

Product Description

Introduction

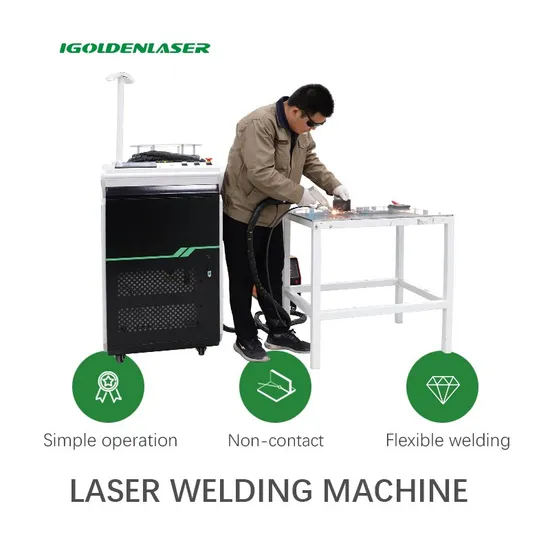

Hand-held laser welding machine, using infrared precise positioning, flexible and convenient, firm welding, no consumables, smooth and fine welding seam and not easy to deform, mainly for laser welding of long-distance and large workpieces, widely used in large and medium-sized sheet metal, cabinets, and chassis , Long-distance spot welding, full welding, continuous welding, sealing welding of inner corners, outer corners, and seams of large workpieces such as aluminum alloy door and window frames, stairs, elevators, and stainless steel furniture.
Laser welding can be applied to the welding of titanium, nickel, tin, zinc, copper, aluminum, chromium, niobium, gold, silver and other metals and their alloys, as well as steel, Kovar and other alloys of the same material. It can be applied to the welding of various dissimilar metals such as copper-nickel, nickel-titanium, copper-titanium, titanium-molybdenum, brass-copper, and low carbon steel-copper. At the same time, it is also widely used in industries such as mobile phone communications, electronic components, glasses and watches, jewelry, hardware products, precision equipment, medical equipment, auto parts, and craft gifts.

Welding system (Note: 2000W laser is a single-phase 220V voltage, currently only refers to Max laser)
Content	Dual axis	Single axis
Supply voltage	1000W/1500W/2000W: Single-phase 220V±10%, 50/60Hz AC 3000W: Three-phase 380V±10%, 50/60Hz AC
Output method	Continuous light
Power	≤3000W
Language	Chinese, English, Russian, Korean, Vietnamese, Japanese
Operating mode	7 swing modes: Dot, Line, Circle, Ellipse, Triangle, Character, Half Circle	Straight line mode
Laser power adjustment	10%-100% continuous gradient adjustable
Laser frequency adjustment	1kHz-30kHz continuous gradient adjustable
Clear aperture	9mm	11mm
Swing range	0--5mm
Collimated focal length	50mm
Focus focal length	150mm
Cleaning head picture	Figure 1 below	Figure 2 below
Cleaning head weight	1KG	0.75KG
Vibration lens material	quartz
Mirror material	quartz
Field lens material	quartz
Screen	Cabinet standard 7 inches + cleaning head standard	Cabinet standard 7 inches
Cable length	10 meters (optional 15 meters)
