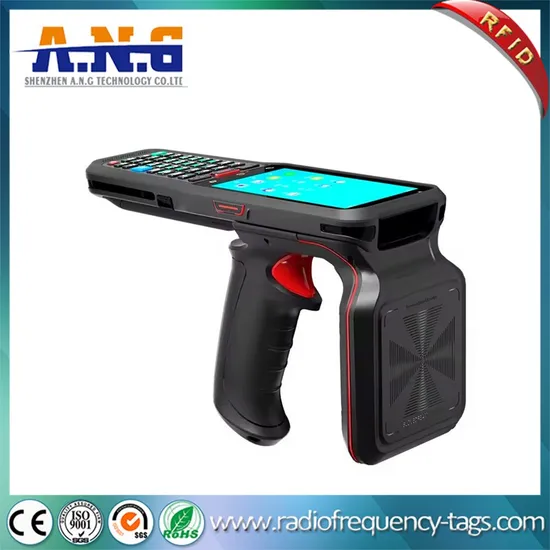

Android 10.0 OS RFID UHF Handheld Terminal PDA with Fingerprint Barcode Scanner
| US$420.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ANGN41U
OS
Android
Memory Capacity
2GB+16GB Supports up to 4GB+64GB
Applications
Handheld Computer Equipment
CPU Type
Cortex-A53 Quad Core 64 Bit 2.0
Internet Connection
WI-FI
Classification
Ultra High Frequency
Communication Interface
Type-C 2.0 USB X 1, Supporting OTG Function
Audio
Speaker (Mono), Microphone, Receiver
Keypad
38 Soft and Hard Rubber Buttons, Left Button X1
Transport Package
Individual Original Packaging
Specification
201.8mm× 72mm× 140mm
Trademark
A. N. G
Origin
Shenzhen
HS Code
8471900090
Production Capacity
5000
Product Description
Android 10.0 Os RFID UHF Handheld Terminal PDA With Fingerprint barcode Scanner| Product parameters | |
| Performance | |
| Quad core | |
| CPU | Cortex-A53 Quad core 64 bit 2.0 GHz high performance processor |
| RAM+ROM | 2GB+16GB Supports up to 4GB+64GB |
| Expand memory | Micro SD(TF) Supports up to 128GB |
| System | Android 10.0 |
| Data communication | |
| WLAN | Dual-band 2.4GHz / 5GHz, Supporting IEEE 802 a/b/g/n/ac protocol |
| WWAN | 2G:GSM(850/900/1800/1900MHz) |
| 3G:WCDMA(850/900/1900/2100MHz) | |
| 4G:FDD:B1/B3/B4/B7/B8/B12/B20 TDD:B38/B39/B40/B41 | |
| Bluetooth | Support Bluetooth 5.0+BLE Transmission distance 5-10 meters |
| GNSS | Support Gps, Galileo, Glonass, Beidou |
| Physical parameter | |
| Dimensions | 201.8mm×72mm×140mm(Including the handle) |
| Weight | <750g (Depends on device function configuration) |
| Display | 4.0 "color display with resolution 480×800 |
| TP | support multi-touch |
| Battery capacity | Rechargeable polymer battery (7.6V 3750mah) removable |
| Standby time >350 hours | |
| Working time > 12 hours | |
| Charging time <3H, using standard power adapter and data cable | |
| Expansion Card slot | Nano SIM card x 2, TF card × 1 |
| Communication interface | Type-C 2.0 USB x 1, supporting OTG function |
| POGO Pin x 1 | |
| Audio | Speaker (mono), Microphone, Receiver |
| Keypad | 38 soft and hard rubber buttons, left button x1, right button x1 |
| Sensors | Gravity sensor, light sensor, distance sensor, vibration motor |
| Data collection | |
| Barcode scanning (Optional) | |
| 2D Scanning engine | Honeywell N5703 |
| 1D Symbologies | Code128,EAN-13,EAN-8,Code39,UPC-A,UPC-E,Codabar,Interleaved 2 of 5,China post 25,ISBN/ISSN, Code93,UCC/EAN-128,GS1 Databar,HIBC,etc. |
| 2D Symbologies | PDF417,Micro PDF417,GS1 Composite,Aztec Code,Data Matrix,QR Code,Micro QR Code,MaxiCode,Hanxin Code,etc. |
| Camera (Standard) | |
| Rear camera | 800W pixel HD camera Support auto focus, Flash, Anti-shake, Macro shooting |
| Front camera | 500W pixel color camera |
| NFC (Optional) | |
| Frequency | 13.56MHz |
| Protocol | Support ISO14443A/B, 15693 agreement |
| Distance | 2cm-5cm |
| UHF(Optional) | |
| Distance | 0-13m |
| Reading speed | >200 tags per second (circular polarization) |
| Language/input method | |
| Input | English, Pinyin, Five strokes, Handwriting input, Support soft keypad |
| Language | Language packs in Simplified Chinese, Traditional Chinese, English, Korean, Japanese,Malaysian,etc. |
| User environment | |
| Operating temperature | -20ºC - 55ºC |
| Storage temperature | -40ºC - 70ºC |
| Environment humidity | 5%RH--95%RH(no condensation) |
| Drop specification | 6 sides supports 1.2 meters drops on the marble within the operating temperature |
| Rolling test | 0.5m rolling for 6 sides, can still work steadily |
| Sealing | IP66 |
| Accessories | |
| Standard | Adapter, Data cable, Protective film, Instruction manual |
