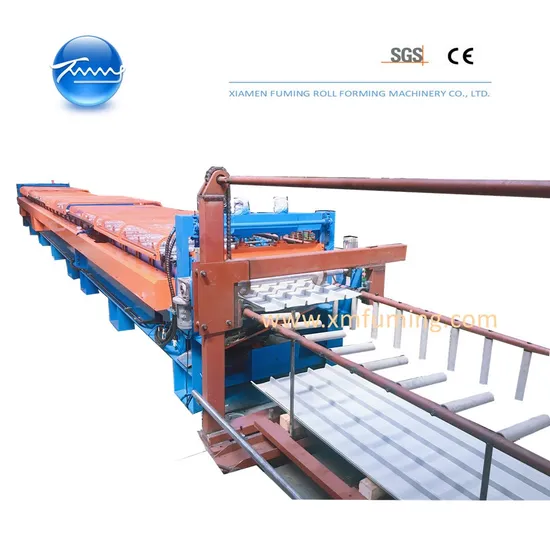

Good Price 40gp Fuming Container Xiamen Corrugated Roof Sheet Forming Machine Bondek Roll Former with CE
| US$56,000.00-65,000.00 | 1 SET (MOQ) |
Basic Info.
Model NO.
YX38-187.5-750/937.5 DECKING
Customized
Customized
Usage
Floor
Color
Customized
Thickness
0.3mm to 1.5mm
Yield Strength
350MPa
Transport Package
Container
Specification
40GP
Trademark
FUMING
Origin
Xiamen
HS Code
8455229090
Production Capacity
15 Sets/Month
Product Description
| ROLL FORMING MACHINE FOR YX38-187.5-750/937.5 DECKING PROFILE | |
| Material Specification | |
| Thickness | 0.3mm to 1.5mm |
| Effective width | 750mm/937.5mm |
| Feeding width | Approx.1000/1250mm |
| Material | GI |
| Strength | 350MPa |
| Machine Components | |
| 5Ton*1250mm Hydraulic Decoiler | |
| Coil inner hole expanding | Hydraulic system, 3KW pump motor |
| Speed regulating | Frequency inverter, 3KW motor |
| Expanding type | Taper wedge expanding system |
| Load capacity | Max.5Tons |
| Coil inner diameter | 510±30mm |
| Coil outer diameter | Max.1600mm |
| Coil width | Max.1250mm |
| Stop/start rotation | Automatic stopping device with limited switch to assist |
| Hydraulic Pre-shearing Device | |
| Hydraulic Pre-shearing device, manual control | |
| Share in the same hydraulic group of post cutting device | |
| Only for cutting the first piece and the end piece of the sheet | |
| Roll Forming Machine | |
| Driving system | Gear/sprocket |
| Forming station | 28 stations |
| Roller material | 45# steel, CNC lathes, hard chrome coated |
| Option for roller material | Cr12, Cr12Mov |
| Shafts Diameter | Φ95mm |
| Main motor | 15KW×2 |
| Line speed of rollformer | Approx. 18m/min or customized |
| Hydraulic Cutting Device | |
| Cutting type | Slug Breaker |
| Cutting blades | Two sets, one for thin thickness, the other for thick thickness |
| Cutting tool material | Cr12, heat treatment |
| Hydraulci pump motor | 5.5KW |
| PLC Control System | |
| Function | Control the quantity & cutting length automatically |
| PLC | Siemens |
| Touch screen | Siemens |
| Inverter | Schneider |
| Encoder | Omron |
| Cut-to-length tolerance | ≤±2 mm or customized |
| Control Voltage | 24V |
| 12 Meters Stacker | One unit |
