Knee Type Gear Head Horizontal and Vertical Drilling Milling Machine Zc7550cw
| US$1,800.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZX7550CW
Type
Worktable Milling Machine
Object
Hardware
Structure
Lifts
Milling Cutter Type
Cylindrical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
Precision
Certification
GS, CE, ISO 9001
Condition
New
Transport Package
W/Case
Specification
1250X360
Trademark
Allway
Origin
China
HS Code
84592900
Production Capacity
1000PCS/Year
Product Description

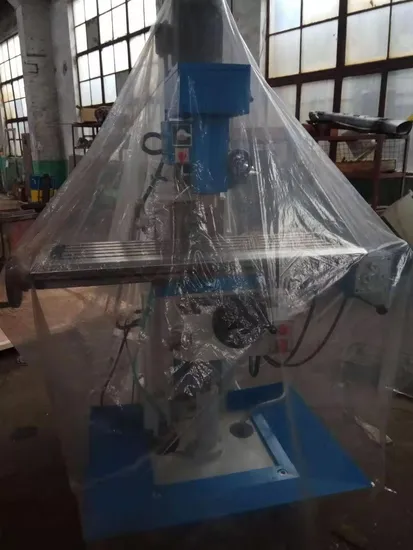

Description:ZX7550 KNEE-TYPE MILLING AND DRILLING MACHINE is a multifunction drilling and milling machine, bed rigidity, movement stability, high accuracy.Guide by quenching with good wear ability. Vertical milling, horizontal milling adopts gear drive, transmission of large torque. Longitudinal can be moved with machinery power feeder, reduce labor intensity and improve the machining accuracy and surface finish.Guide by quenching with good wear ability. Milling head mounted on the front sliding arm, it can move back and forth, not only in the vertical plane of rotation about 45 degrees, but also turn 360 degrees in the bed with a good universal nature of the processing.
Product Parameters
If installing appropriate attachments, this machine has many processing function, such as milling, drilling, boring, plane abrasion, etc. Operation expediently, performance reliably, applying to metal finishing and maintain of kinds of companys, especially tools, moulds, fastenerprocessing.
| Milling and drilling machine from Manufactures | ZX7550 | ZX7550C | ZX7550W | ZX7550CW |
| Max.drilling dia (mm) | 50 | 50 | 50 | 50 |
| Max.horizontal milling dia (mm) | 100 | 100 | 100 | 100 |
| Max.vertical milling dia (mm) | 25 | 25 | 25 | 25 |
| Max.boring dia (mm) | 120 | 120 | 120 | 120 |
| Max.tapping dia | M16 | M16 | M16(Vertical) | M16 |
| Distance.spindle to table surface (mm) | 140-490 | 90-490 | 80-460 | 90-490 |
| Spindle speeds range (r.p.m) | 230-1825 | 115-1750 | 230-1825(Vertical) 80-1300(horizontal) | (Vertical)115-1750 (Horizontal)60-1350 |
| Spindle travel | 120 | 120 | 120 | 120 |
| Table size (mm) | 800×240 | 800×240 | 800x240 | 800×240 |
| Table travel (mm) | 400×230 | 400×230 | 400x230 | 400×230 |
| Overall dimensions (mm) | 1100×1100×2080 | 1100×1100×2080 | 1280×1100×2080 | 1280×1100×2080 |
| Motor (Kw) | 0.85/1.5 | 0.85/1.5 | 0.85/1.5(Vertical) 1.1(horizontal) | ( Vertical)0.85/ 1.5 (horizontal)2.2 |
| N.W/G.W (Kg) | 610/770 | 610/770 | 700/880 | 850/1000 |
