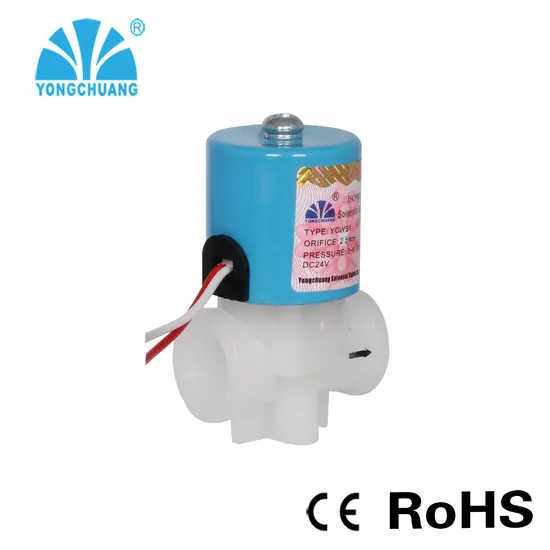

Yongchuang Driect Acting Small Plastic Solenoid Valve for RO Stystem
| US$1.40 | 10 Pieces (MOQ) |
Basic Info.
Model NO.
YCWS1
Actuator
Electric
Connection Form
Thread
Type
Direct Acting
Material
Body-Nylon, PP, POM
Pressure
0.0MPa~0.7MPa
Valve Structure
Direct Acting Structure
Power Supply
DC or Vc
Application
Household Usage
Port Thread
BSPP BSPT NPT
Voltage
DC-12V, 24V AC-24V, 120V, 240V/50Hz
Transport Package
Carton
Specification
31cm*25cm*21cm
Trademark
YONGCHUANG
Origin
Zhejiang, China
HS Code
8481804090
Production Capacity
10000 Pieces/ Month
Packaging & Delivery
Package Size
31.00cm * 25.00cm * 21.00cm
Package Gross Weight
0.125kg
Product Description
Product Description| Characteristic : | • Pilot operated diaphragm, min 0 bar • Food class valve body, suitable for RO system,soft drink machine | |||
| Medium: | Air, water | |||
| Temperature: | NBR:-10ºC~80ºC EPDM:-30ºC~120ºC VITON:-20ºC~150ºC | |||
| Pressure: | 0-0.7MPa | |||
| Port size: | JACO 1/4' | |||
| Port thread: | NPT | |||
| Orifice(mm): | 2.5mm | |||
| Voltage: | DC-12V; 24V;AC230V,AC110V | |||
| Tolerance: | ±10% | |||
| Coil: | AB14B,6W(DC),8VA(AC),IP65,100%ED | |||
Certifications
Packaging & Shipping
Company Profile
Our service
For OEM products
We will finish the production within 15 days after payment has been confirmed. Cooperation with PARKER has improvedour quality!
Warranty
Any question or problem will be respond within 24 hours.
One year guarantee:
One year since delivery.
Lifetime service:
Any problem happened to our product, we will do our best to help client to solve it, spare parts will be half price in lifetime.
Problem solve:
If you can't solve the problem in your local, please delivery the product to us, we will repare it, or we send our technicist to you.
Quality control:
All the products are calibrated with real working condition, and 100%tested before shipping as qualified product.
Integrity:
All the warrenty and guarantee from us will be put into come true.
