800kg/H Capacity Gas-Heating Needle Punched Heat Setting Production Line

Product Description

800kg/h Capacity Gas-heating Needle Punched Heat Setting Production Line
Product Description
Function and Characteristics:

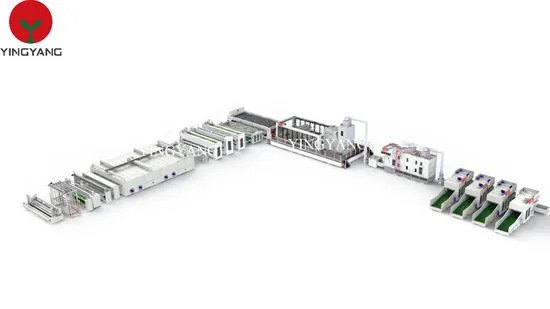

It could produce medium and high grade needle punched and heat setting nonwoven fabric for Asphalt felt base cloth. And it is also possible to make geotexitle and other needle punched fabric. 1. Applied fiber: PET and PP etc fiber Type: 3.3-8dtex 60-90mm.2. Product specification: 90-500GSM3. Capacity: 800kg/h for carding machine(take 6D PET fiber as raw material)4. Control method: PLC and touch screen controlling systemTechnical process of the production line:1. Bale openers 2. Pre-opener 3. Big Blender4. Main opener 5. Vibration feeder 6.Auto lelver7. Double-cylinder carding machine 8. Cross lapper 9. Batt Feeder10. Pre-needle punching machine11.2 sets of main needle punching machine
12. Latex oven13. ironing machine
14.cooling machine15. Tension frame16. Winder and cutter
Detailed Photos
Characteristics of the stentering oven:
1) The special design for oven channel is easy for installation and maintenance, and good for the evenness of hot air, which will make befinit for the product hardness evenness.
2) Heating method: gas heating and conduction oil heating
3) The length of oven chamber: 18m, 24m, 30m
4) For each chamber, there is one separate motor to adjust the width. It can control both separately and uniformly.
5) There is sepcial energy recovery system and it will reduce the energy losing in great certain.
Carding machine:
1. High capacity up to 800kg/h;
2. Advanced structure: perfect air flow negative control system and the structure is enclosed completely so that no fiber flying out of carding and reduce the cleaning frequence greatly.
3. New design: all the cables trays are designed and fixed on the machine.
