Product Description

Product Description Double Planetary Mixer

Type	100L	200L	300L	500L	650L	800L	1000L	1500L	2000L	3000L
Working volume (L)	100	200	300	500	650	800	1000	1500	2000	3000
Design volume (L)	140	280	400	665	800	1070	1320	1980	2550	3820
Mixing power (kw)	7.5-15	15-22	22-37	30-45	37-45	37-55	45-90	55-110	75-132	90-160
Revolving speed (rpm)	0-40	0-40	0-40	0-30	0-30	0-30	0-30	0-20	0-20	0-15
Rotating speed (rpm)	0-72	0-72	0-72	0-55	0-55	0-55	0-55	0-36	0-36	0-28
Dispersing power(kw)	11-18.5	18.5-22	30-37	37-45	37-45	45-55	55-75	75-90	90-110	110-132
Dispersing speed (kw)	0-1450	0-1450	0-1450	0-1450	0-1450	0-1450	0-1200	0-1200	0-1200	0-1200

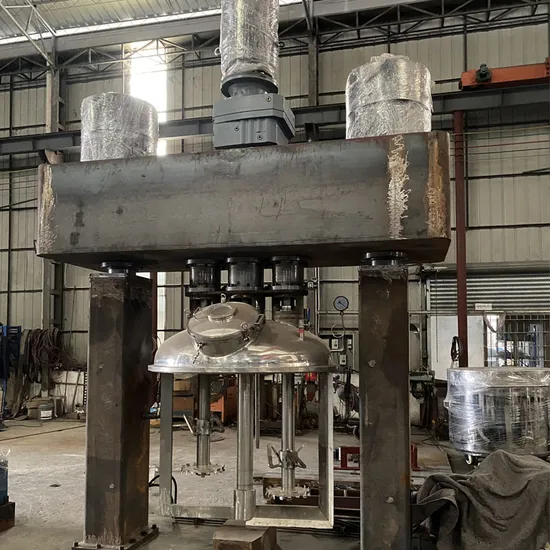

Double Planetary Mixer consists of low speed agitator and a high speed disperser, has good mixing, reacting, dispersing, dissolving effect, especially suitable for the dispersing and mixing of solid-liquid, liquid-liquid phase; It's quite fit for high viscosity product such as adhesives, silicone, Lithium battery slurry etc. due to its super strong output torque; The equipment has scraper which can scrape the bottom of the tank without dead corner or residue; also there are extrusion device and sliding rail to work
together with this machine, so that realizing the integrated operation of mixing and discharging.
sigma mixer blades Screw Frame+Disperser+Scraper Screw Frame+Scraper Multi-layer Inclined Blade+Disperser
Double planetary mixer application scenarios
Recommended Products Company Profile
The JCT machinery has been producing industrial mixing, dispersing, kneading.blending and drying for over 15 years since 2006. We take 'make the mixingmore easier' as our belief and purpose in order to increasing the durability anoapplied in varius industries including cosmestics, chemical, plastics, batteryslurry, inks, pharmaceuticals, platics, adhesives, sealant, electronic pastes andglues etc.
We design and customise for every unique project by starting with 3D craftexposion, Our reliable team of engineers, sales managers, marketing andproduct analyzers are always ready for solving your inquiry and question onapplications.
JCT machinery now has over more than 10 product lines are ready for helpingyou find out best solution of your project including, silicone sealant, hot meltglue, battery slurry, rubbers and paint etc.
