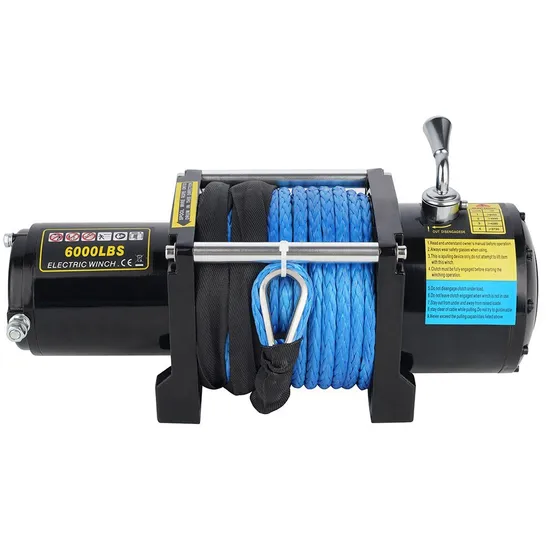

High Satisfaction Multiple Repurchase Carton and Pallet Wholesale Electric Cable Puller Winch
Basic Info.
Model NO.
AT-6000
Power Type
Permanent-magnet DC
Electric Winch Model
4X4
Working Voltage of Electric Winch
Low Voltage
Brand
Antai
Applicable Environment
Mountain Road
Certification
TUV, GS, CE
Transport Package
Carton and Pallet
Specification
1PC/CTN
Origin
Ningbo, China
HS Code
84253190
Production Capacity
10000 Pieces Per Month
Product Description
Pure copper motor and power cable, waterproof control box, steel gears 12V DC 6000 lbs rated line pull 2.7 HP pure copper motor Waterproof control box 3m handheld wired remote Pull-and turn clutch handle 3-stage planetary gearing with 235:1 ratio 8.3mmx26m steel wire rope Heavy duty clevis winch hook Stainless steel 4-way roller fairlead 100% full load holding automatic mechanical brake IP68-rated waterproof and dustproof winch 6000 LBS FEATURES AND SPECIFICATIONS
| Rated Line Pull | 6000LBS (2722kgs) single line |
| Motor | 2.0kw/2.7hp, permanent magnet |
| Control | Remote switch, 9.8ft(3.0m)lead |
| Gear train | 3 Stage Planetary |
| Gear train ratio | 235:1 |
| Clutch | Sliding Ring Gear |
| Braking Action | Automatic In-The-Drum |
| Drum Size | Φ2.5"(64)mm×(5.3)133.5mm |
| Cable | Φ6.4mmX20m |
| Overall Dimensions | 16.3"x6.3"x8.5"(415mm×160mm×217mm) |
| Mounting Bolt Pattern | 165mm×114mm Φ11 |
| Weight | N.W.31kg G.W.33Kg |
| Packing Size | 610×350×270mm |
| Line pull lbs(kgs) | Line speed ft/min(m/min) | Current A |
| 0 | 9.8(3.0) | 30 |
| 2000(907) | 7.5(2.3) | 120 |
| 4000(1814) | 4.9(1.5) | 210 |
| 6000(2722) | 2.9(0.9) | 260 |
| Layer | Rated Line Pull lbs(kgs) | Total Rope on Drum ft(m) |
| 1 | 6000(2722) | 15(4.6) |
| 2 | 4990(2263) | 15.1(8) |
| 3 | 4280(1941) | 43(13) |
| 4 | 3730(1692) | 62(19) |
| 5 | 3310(1501) | 66(20) |
