333mv Flexible Rope Current Transformer Rogowski Coil Current Probe
| US$10.00-90.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
RSCT-2000A
Production Process
SemiConductor Integrated
Material
Metal
Accuracy Grade
1.0G
Application
Switching Power Supply
IP Rating
IP67
Certification
RoHS
Customized
Customized
Model
Rogowski Coil 2000A
Flex Rogowski Coil Output
2000A/0.33V
Certificates
RoHS,Ce,ISO9001
Insulation
3kv
Frequency
50/60Hz
Colour
Black ,Red ,Blue
Transport Package
Cartons
Specification
ROHS, ISO9001: 2000, CE
Trademark
Jiangyin spark
Origin
China(Mainland)
HS Code
8504
Production Capacity
60, 000 PCS/Month
Product Description

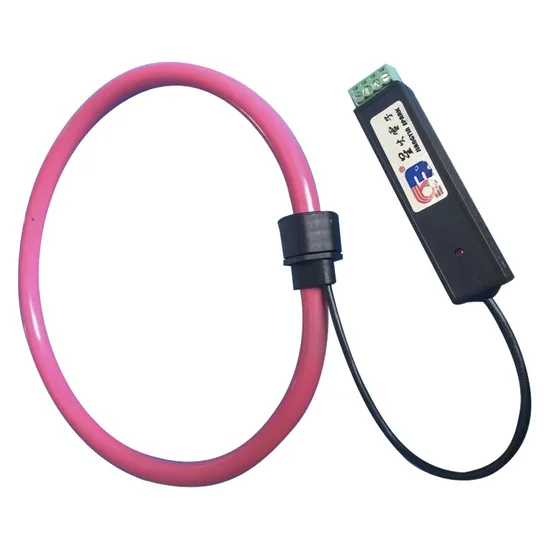

CE ROHS 0.333V Flexible Rogowski Coil Current probe Jiangyin Spark FCT is flexible, like rope ,it is designed to use where solid or split core current transformers cannot fit Advantage including high accuracy, wide measurement and frequency range and very light weight.The probes comprise a flexible air-cored sensor which can be opened, allowing them to be installed around a primary conductor without interrupting the circuit. The flexible and lightweight measuring head allows quick and easy installation in hard to reach areas and with large conductors.Specifications Of 0.333V Flexible Rogowski Coils Current Transformers
| Rated current (rms) | 10A-100KA |
| Output | mV (without integrator) |
| 0.333V,0-5V AC(with integrator) | |
| Power supply | 9V,15V,24V DC |
| Coil length | 20cm-200cm |
| Tube | UL material |
| Wire lead | Shielded cable |
| Isolation voltage | 3000V |
| Operating temperature | -25ºC-+70ºC |
| Frequency | 50Hz-60Hz |
| Accuracy | ±1% |
Drawing of 0.333V Flexible Rogowski Coils Current Transformers
Test of Flexible Rogowski Coils
Shipmet of split core current transformer
