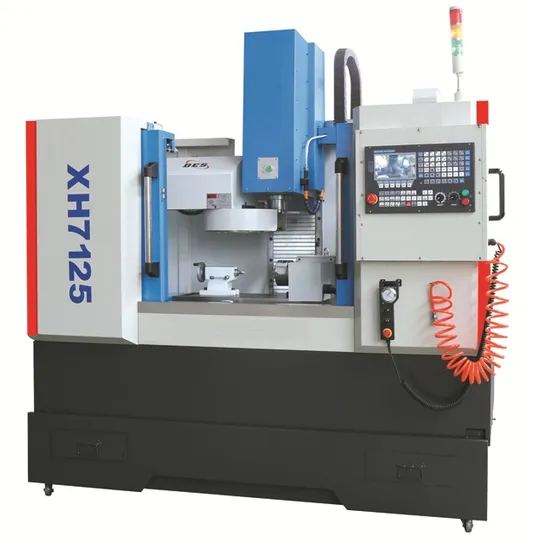

XH7125 Precision Full Cover CNC Milling Machine for Metal Machining
Basic Info.
Model NO.
XH7125
Structure
Vertical CNC Milling Machine
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Worktable Size
900*250mm
X Axis Travel
450mm
Y Axis Travel
260mm
Z Axis Travel
380mm
Main Power
2.2kw
Spindle Speed
6000rpm
Transport Package
Poly-Wood Case
Specification
CE, SGS, ISO
Trademark
WMT
Origin
Chizhou, Anhui
HS Code
845961900
Production Capacity
20 Sets Per Month
Packaging & Delivery
Package Size
120.00cm * 150.00cm * 210.00cm
Package Gross Weight
1350.000kg
Product Description
Features:CNC milling machine:
BT30/NT30, servo motor
Function:drilling , tapping, chamfering, bearing, milling face thread, handle and tower
Aesthetic and elegant modeling.
High efficiency for automatic knife changing.
X/Y/Z axes adopt rectangular guide way,
The spindle frame is used in the lathe pedestal to increase its stability and stiffness.
The machine has a good rigidity and strong vibration resistance.
It has a good chip removal performance.
Main Technical Data:
Specification | XH7125 |
| Main motor power | 2.2kw |
| Highest spindle speed | 6000rpm |
| X/Y/Z to the motor torque | 6/6/7.7N.M |
| The spindle taper hole | BT30(optional:ISO40) |
| Table size | 900x250mm |
| X/Y/Z axis travel | 450x260x380mm |
| Distance between spindle center and surface column | 330mm |
| The distance of spindle end face to the workbench | 50-430mm |
| Rapid movement(X/Y/Z) | 6/5/4m/min |
| T-slot | 3/14/35 |
| Table load | 250kgs |
| Positioning accuracy | 0.02mm |
| Repeat posotioning accuracy | 0.01mm |
| Machine tool appearance size(L x W x H) | 1200x1500x2100mm |
| Net.Weight | 1300kgs |
Standard Accessories:
| servo motor, casting iron machine stand, 10pcs tool magazine spindle speed:8000rpm, servo spindle, pneumatic tool chaing, auto lubrication system, coolant system, complete cover type |
Guarantee Terms:Complete service by free of charge within 13 months after B/L date Technical service will be given forever at any time. Any questions during operation, can contact us freely by email, or contact on line by Skype, WhatsApp, etc. Also can talk face to face during fairs. You will get response within 20 hours.
