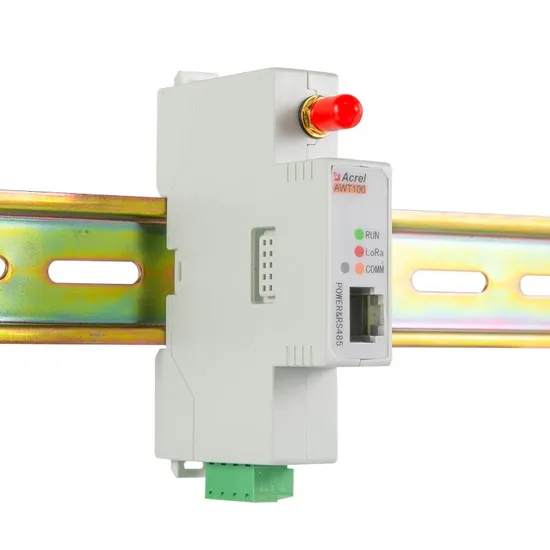

Acrel Wireless Communication Terminal GPS Location DIN Rail Mounted RS485 Communication Interface Awt100-GPS
| US$36.40 | 1 Piece (MOQ) |
Basic Info.
Model NO.
AWT100-GPS
Information content
Data
Certification
CE
Condition
New
Installation
DIN Rail
Trademark
Acrel
Origin
China
Product Description
Product Description AWT100 wireless gateway communication terminal is a new wireless data acquisition device launched by Acrel. The uplink communication includes 2G, 4G, NB, LoRa, LoRaWAN and other communication modes. The downlink interface provides a standard RS485 data interface, which can easily connect power meters and RTUs, PLC, industrial computers and other equipment, only need to complete the initial configuration, you can complete the data acquisition of MODBUS equipment; at the same time AWT100 series wireless communication terminal uses a powerful micro-processing chip, with built-in watchdog technology, reliable performance stable .Product Parameters
| Downstream | RS485 communication | ||||
| Uplink | 4G communication | NB-IoT communication | 2G communication | LoRa communication | WiFi communication |
| SIM Card Voltage | 3V,1.8V | / | |||
| Antenna Interface | 50Ω/SMA(Female head) | ||||
| Serial Port Type | RS-485 | ||||
| Baud Rate | 4800bps,9600bps,19200bps,38400bps(default 9600bps) | ||||
| Working Voltage | DC24V or AC/DC220V | ||||
| Working Temperature | -10ºC~55ºC | ||||
| Storage Temperature | -20ºC~70ºC | ||||
| Humidity Range | 0 to 95% non-condensing | ||||
| Parameter name | AWT100-GPS | AWT100-WiFiHW | AWT100-CE | AWT100-DP |
| Work | Positioning accuracy: 2.5-5m | Support 2.4G&5G frequency band WiFi rate: 115200bps | Ethernet rate 10/100M adaptive | Profibus address: 1~125. (Note) |
| Downlink | RS485 Communication | RS485 Communication | RS485 Communication | RS485 Communication |
| Uplink | GPS positioning | WiFi wireless | Ethernet communication | Profibus communication |
| Working current | Static power consumption:≤1W,transient power consumption:≤3W | Static power consumption:≤1W,transient power consumption:≤3W | Static power consumption:≤1W,transient power consumption:≤3W | Static power consumption: ≤0.5W, transient power consumption: ≤1W |
| Interface | 50Ω/SMA(Faucet) | 50Ω/SMA(Faucet) | RJ45 | DP9 |
| Serial port type | RS-485 Communication | RS-485 Communication | RS-485 Communication | RS485-Communication |
| Baud rate | 4800bps,9600bps,19200bps,38400bps(Default 9600bps) | 4800bps,9600bps,19200bps,38400bps(Default 9600bps) | 4800bps,9600bps,19200bps,38400bps(Default 9600bps) | 4800bps,9600bps,19200bps,38400bps(Default 9600bps) |
| Operating Voltage | DC24V or AC/DC220V | DC24V or AC/DC220V | DC24V or AC/DC220V | DC24V or AC/DC220V |
| Operating temperature | -10ºC~55ºC | -10ºC~55ºC | -10ºC~55ºC | -10ºC~55ºC |
| Storage temperature | -40ºC~85ºC | -40ºC~85ºC | -40ºC~85ºC | -40ºC~85ºC |
| Humidity range | 0~95% Non-condensing | 0~95% Non-condensing | 0~95% Non-condensing | 0~95% Non-condensing |
