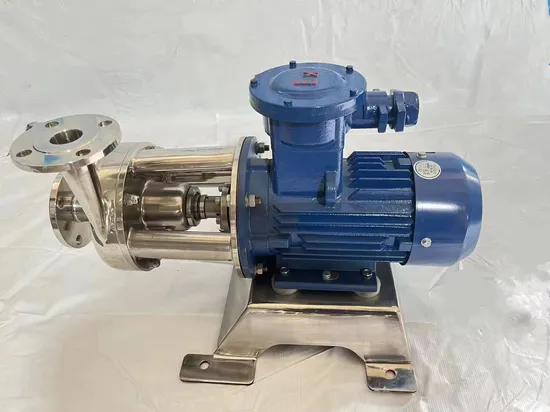

Stainless Steel Vacuum Discharge Pump

Product Description

Product Description Application: Belonging to a turbine guided centrifugal negative pressure pump, it can extract liquid from a vacuum tank at a negative pressure of 0.09Mpa.
Specification: 3T-180T, 0,75KW-75KW Material: SUS304 SUS316L (When selecting materials, pump body, pump cover impeller, etc.)
The parts in contact are made of SUS316L or SUS1304 stainless steel. Standard: DIN, SMS
Impeller: Split impeller and semi closed impeller.
Surface treatment: The liquid receiving part is polished, and the rest is treated with matte or sandblasting. Working conditions: The sanitary centrifugal pump is used for conveying at high and low liquid levels, with a certain suction force.
Maximum inlet pressure: 0.5MPa
Temperature range: -10 ºC to+140 ºC (EPDM), washable mechanical seal: water pressure: maximum 0.1MPa, water volume: 0.25-0.5L/min
All products must go through a strict qualityinspectionprocess before leaving the factory.
Wenzhou State Machinery Equipment Manufacturing Co., Ltd is a setof scientific research, manufacturing, sales in one of the stainless steel foodmachinery, beverage machinery, chemical machinery, water treatment equipmentproduction enterprises.The company is specialized in health grade stainlesssteel fluid equipment design, manufacturing and sales, is a stainless steelcontainer and stainless steel equipment professional manufacturers.Qur companyintroduces domestic advanced production technology and equipment processingand production, beautiful shape, unique structure.In line with GMP standard ofhealth standards, widely used in environmental protection, pharmaceutical, food.beverage, dairy, daily chemical and biological engineering and other fields.
