High Precision Transformer Oil Density Tester for Accurate Measurements

High Precision Transformer Oil Density Tester for Accurate Measurements

US$1.00 1 Set (MOQ)

Basic Info.

Model NO.
DT-1298
Maximum Measurement Range
Oil Density Tester
Density Meter Type
Reflection Density Meter
Viscometer Type
Oil Density Tester
Density Meter Principle
Hydrostatic Density Meter
Test Density
Light
Viscometer Reproducibility
Oil Density Tester
Viscometer Rotor Number
Oil Density Tester
Viscometer Rotor Speed
Oil Density Tester
Viscometer Rotor Specifications
Oil Density Tester
Description
Transformer Oil Density Tester by ASTM D1298
Application
Test Density of Petroleum Oil, Transformer Oil
Test Method
Hydrometer Method
Test Standard
ASTM D1298
Features
Low Price Transformer Oil Density Tester
Quantity of Density Meter
10PCS
Temperature Control Range
0-100 Centigrade
Volume of Test Tube
500ml
Heating Power
700W,1000W
Sensor
PT100
Delivery Lead Time
7 Days
Shipping Method
by Express or by Air
Trade Term
EXW, Fob, CNF, CIF, DDU, etc.
Transport Package
Oil Density Tester Is Packed in Veneer Case
Specification
560mm*380mm*580mm
Trademark
Delta
Origin
China Mainland
HS Code
9031809090
Production Capacity
1000 Sets / Month

Packaging & Delivery

Package Size
69.00cm * 69.00cm * 79.00cm
Package Gross Weight
39.000kg

Product Description

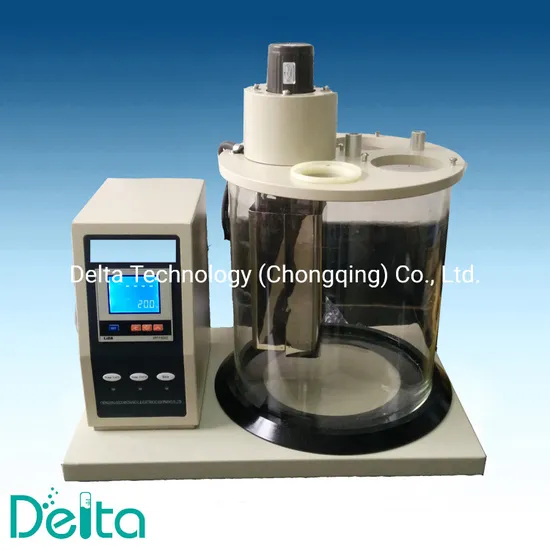

DT-1298 Transformer Oil Density TesterProduct Description
DT-1298 Transformer Oil Density Tester is designed and made as per standards GB/T 1884-2000 and ASTM D1298.
DT-1298 Transformer Oil Density Tester is used to determine the density of crude petroleum and liquid petroleum. Product Parameters
No.Item NameDT-1298 Transformer Oil Density Tester
1Power supplyAC(220±10%)V, 50Hz
2Volume of glass vesselФ300*340mm
3Volume of test tube500ml
4Heating power700W,1000W
5SensorPt100
6Temperature control range0ºC~100ºC, ±0.2ºC
7ThermometerMercury-in-glass thermometer. Scale division 0.2ºC
8Dimension560mm*380mm*580mm
Features
DT-1298 Transformer Oil Density Tester is composed of:
bathtub, bath cover, electrical controller, temperature controller, motor-driving stirring device, electrical heater, density measuring flask and holder, petroleum oil densimeter, thermoeter etc;DT-1298 Transformer Oil Density Tester adopts intelligent LCD temperature controller.
The control rate is fast and overstrike is small.
The temperature control can reach ±0.2ºC;
It equips a hard glass vessel and electric stirrer.
The temperature in vessel is uniform which is easy to observe the sample;DT-1298 Transformer Oil Density Tester is equipped with 10 sets different measurement range of hydrometer.
