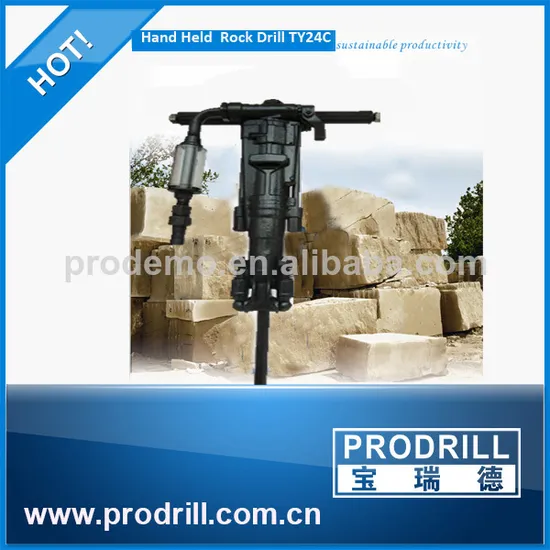

Ty24c Hand Held Rock Drills for Quarrying

Product Description

TY 24C pneumatic rock drill are light and small types designed on the basis of less recoil in safty.They are suitable to the secondary rock breaking, and bedrock drilling blasthole for demolition rock and dimension stone quarrying.
Technical Parameters

Model		Y6	Y20	Y19A	Y24	Y26	YT24C
Weight	kg	6	18	19	24	26	27
Air consumption	L/s	≤9.5L/s	25	43	≤50	≤47	45
Length	mm	426	605	600	604	650	610
Shank	mm	15*88	22*108	22*108	22*108	22(25)*108	22*108
Bore Dia	mm	20	30-42	30-42	30-42	30-42	30-42
Drill depth	m	0.5	3	5	5	5	5
Impact rate	Hz	51	34	35	30	27	27
Hose connection	mm	13	16 or 19	19	19	19	19

Ps.: Others
1. Besides high quality soundless cracking agent, we also sell other drilling, blasting tools:
Construction & Mining & Rock Drill Tools:
A. Down the hole (DTH) Bits and Hammers (drill hole dia.: 76 ~ 381mm): similar to DHD, MISSION series;
B. Top Hammer (drill hole dia.: 33 ~ 152mm): Threaded Tools (Button Bits, Rod, Coupling, Shank Adaptor): (item: R25 / R28/ R32 / R38 and T38 / T45 / T51, ST58, etc.);
C. Overburden Casing Drilling System
2. Advantages:
Compared with the oversea brands, our advantages are bellowing:
a. Our products can match over 95% against the original products
b. Price are competitive against the famous brands and best quality against the small factory
3. About Us:
1. Our factory has been specialized in manufacturing drilling tools and spare parts for over 10 years.
2. We have advanced technology and equipment.
3. Our technician has more than 13 year's professional working experience.
4. Rock drilling tools are exported throughout the world. Main market: Norway, Turkey, USA, Canada, Australia, Brazil, Uruguay, Iran, Philippines, Thailand, India, etc.
