High Precision Pmd3030 CNC Drilling Milling Machine for Flange

Product Description

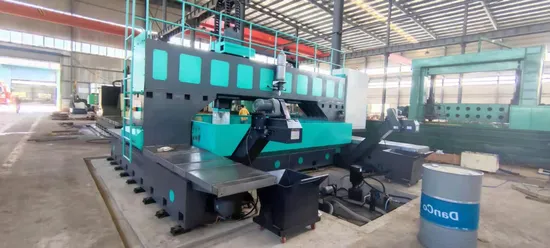

High Precision PMD3030 CNC Drilling Milling Machine for Flange
Product Description
P -M-D Series is a gantry mobile CNC high-speed drilling and milling machine. It is mainly used for drilling, countersinking, chamfering, grooves in holes, and milling of workpieces such as flanges, heat exchangers, tube sheets, and slewing supports. The high-speed alloy drill bit can be used for internal cooling high-speed drilling, and the high-speed steel twist drill bit can also be used for external cooling drilling. The drilling depth can reach 10D (10 times the diameter) by using a special crown drill bit. The machining process is numerically controlled, the operation is very convenient, and it can realize automatic, high-precision, and many kinds of mass production.

Application

This machine is suitable for drilling plate & pipe,baffle and flangin the petrochemical,boiler,refrigeration,wind power flange and other industries.It can also be used in the of connecting plate in the steel structure such as building,bridge,tower and so on
Product Parameters

Product name	CNC drilling machine
Working Area	3000*3000mm
Bed Material	Gray Iron Casting
Feed Method	Servo Feed (ball screw)
Rotation Speed	0-10000 rpm/min
Control System	SIEMENS system
Stack Workpeice Thickness	300mm
Spindle Method	BT40/BT50 (Accept customization)
Clamping method	T slot
ATC	≥6
Max.Tapping Diameter	M42

Machine detailed

Feedback from our customers


Company Profile

Shandong Raintech Sans Technology Co., Ltd. is a high-tech enterprise that integrates product development, designing, production, sales and service in metal roll forming and coils processing industry.
Our Products :including various kind of metal profile roll forming machines, such as solar strut panel roll forming machine, automobile bumper roll forming machine, green house structure roll forming machine, truck beam roll forming machine, highway crash barrier roll forming machine, etc. Tube mills and coils slitting line, cut to length line
Our History: Our factory established in 2008 by one of our company founder Mr. Xu, who was as leader of china roll forming technology research team in SINOMRCH more than 10 years. Since 2008, we started design , engineering and manufacturing of all kinds of roll forming lines, including many difficult lines at same level of world advance technology. At the same time, we also design and produce cut to length line, slitting line and tube mills on the high level quality in china.
Our Technical Strength : We have advance and earliest technology on metal forming and processing . Since 2008, have been succeed in many difficult lines which require high precision, high speed, and big strength used in railway, highway, metro system, electrode plate,solar structure , automobile etc. We have our special design on machine structure and rollers design, punching and cutting design to assure the speed , accuracy and life of machine. We are coincidental for bigger challenge in future on keep advanced in this field
Our Team :
We own an professional oversea marketing team leads by our CEO Ms. Rain
Main technical support team lead by Mr.Xu and after-sales service team with engineers.
We also have local service team in some countries all over the world
Our Service : We provide complete process on quality control, machine trial , TUV, SGS BV inspection before dispatch. And provide free installation and training at customer site. And moreover, we have our own professional local service team in some countries such as India, Egypt , Italy etc.
Our Goal : we have been devoted to the more advance technology in metal roll forming and processing field , trying our best to be the first level of roll forming technology in the world famous manufacture list
package payment and shipping

FAQ

1. What's your advantage ?
A: We assure each machine dispatched from our factory a long-life usage with easy operation and humane design.We consider help our customer to hence the production efficiency and save your human power as our aim.
3. What about the warranty of your products?
A: We provide 12 months warranty since the machine arrived at customer site , free charge of spare parts and oline maintenance service.
4. Where are you? Can l visit you?
A: our factory located in Shandong province, china, welcome to visit us at any time.
5. How about the delivery time?
A: For standard model, the delivery usually 25 days since the advance payment receipt. For the customized products, the delivery time will follow our agreement with customer.We never receive any complain from our customers for the delivery time.
6. What kind of payment does your company support?
A: TT,100% LIC at sight,Cash, Western Union are accepted. If you have other payment terms, welcome discuss with us.
