Multifunctional Laboratory Small Scale Mini Herbal Extraction Equipment

Product Description

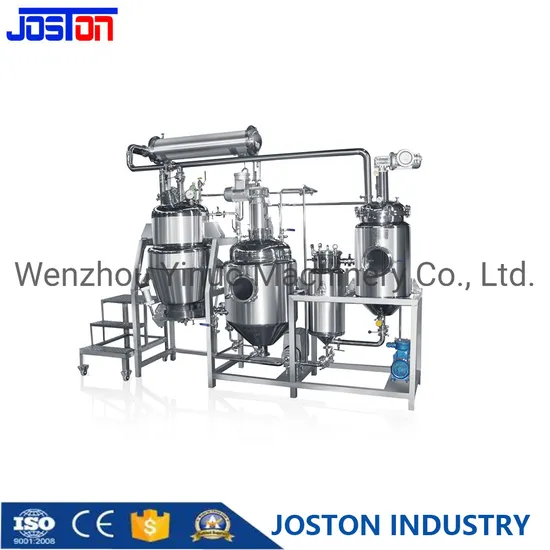

Multifunctional Laboratory Small Scale Mini Herbal Extraction Equipment
Usage scope :
Multifunctional Laboratory Small Scale Mini Herbal Extraction Equipment have complete extractor and concentrator functions for all kinds different raw material ,like herbal leaf ,root,wood , ,seed ,fruit ,flower ,seafood ,animal bone ,organ ,natural product etc.so it is mainly used in the lab, University, research unit, pharmaceutical factory pilot plant to develeoped the new medicine and new production process before the commercial scale production and certificated
Multifunctional Laboratory Small Scale Mini Herbal Extraction Equipment main feature :
1. the equipments use SS304 and SS316L ,whcih can fit to the GMPs and FDA requirement ,also can used for the various solvent to anti-corrosion
2.extractor tank volume scope from 50L-500L ,so it can be used the different pilot scope
3.the equipments can be used different type heating methods : steam heating ,electrical heating ,thermal oil heating etc . so it will be convenient for the end users
4.the cooling medium can be cooling water or tap water .chiller
5.the equipments is a whole complete system ,including the transfer pump ,vacuum pump etc utilities already ,it can fit the one key operation control
6.the whole system located in a Stainless steel platfrom ,so inside pipeline all have finished in our plant already ,so end user not need to make the inside pipeline connection again .
7.It can be used manual operation or HMI/PLC operation .
8.HMI/PLC control functions: 1) extractor temperature PID control ,2) extracting time , 3)foam destroyer ,4) solvent /water charge volume control .5) product outlet viscosity control .6) evaporate temperature control etc.
Multifunctional Laboratory Small Scale Mini Herbal Extraction Equipment working methods :
Multifunctional Laboratory Small Scale Mini Herbal Extraction Equipment can be used to the aromatic oil steam distill extract,water based extract ,solvent based extract,sollhex extract,thermal-reflux extract ,sediment purify process,solvent mixing process concentration &solvent recovery etc.functions.
Multifunctional Laboratory Small Scale Mini Herbal Extraction Equipment composition
Multifunctional Laboratory Small Scale Mini Herbal Extraction Equipment mainly including the following unit: extractor tank ,condenser ,oil/water separator ,multifunctional tank ,single effect evaporator,transfer pump,vacuum pump ,pipeline ,support frame and control panel.
Technology data Specification for Multifunctional Laboratory Small Scale Mini Herbal Extraction Equipment ( take steam heating model for example ):

MODEL		DNT-100	DNT-200	DNT-300	DNT-500
Extractor	Tank Volume L	110	220	350	620
	Heating area m2	0.52	0.96	1.12	1.5
	Jacket pressure MPa	0.3	0.3	0.3	0.3
	Shell pressure MPa	ATM	ATM	ATM	ATM
Multifunctional tank	Volume L	130	230	350	620
	Heat exchanger area m2	0.7	1.5	2.0	2.9
	agitator Motor power KW	0.37	0.75	0.75	0.75
Single -effect evaporator	Heating area m2	0.85	1.50	2.30	3.20
	Condenser Cooling area m2	2.0	4.0	5.0	10
	Agitator Motor power KW	0.37	0.37	0.37	0.37
Vacuum pump power KW		1.5	2.2	2.2	3.0
Transfer pump power KW		0.37	0.37	0.37	0.37
Steam consumption kg/h		100	150	200	250
Total motor power	kw	2.6	3.7	3.7	4.5
Cooling water consumption	T/h	2	4	5	10
Dimension L*W*H m		2.45*0.8*2.35	2.8*0.975*2.5	3.2*1.05*2.6	3.5*1.3*3.05
