High Temperature Overflow Towel Dyeing Machine

Product Description

High temperature High pressure Over Flow Dyeing Machine
Product Description
The innovative ultra low energy consumption over flow dyeing machine is a high temperature high pressure overflow dyeing machine, suitable for all types of knitted and woven fabrics: 100% Cotton, Polyester blends, etc.
With its increased productivity and enhanced reliability, it offers new perspectives and opportunities for all progressive textile companies.
High efficient and economic, it saves over 50% water consumption, 40% auxiliaries and steam compared with traditional dyeing machines.
Special Features
- Modified lifting reel(winch)with reduced height, for less fabric tension
- Available for towel dyeing
Technical Details
- Main tank & liquor carrying parts are made of stainless steels 316L
- Touch screen controller
- Operating temperature 140ºC
- Adjustable chamber, machine load can be reduced up to 60%
- Minimum liquor ratio 1:4
- Fabric speeds of up to 450 m/min
- Electro-pneumatic operated valves
- Automatic seam detector
- Frequency controlled pump motor & winch
- 1-6 fabric chambers per machine
- Chamber capacity around 300 kg
- Analog dosing
Programmable automated dosing of dyes and chemicals
- Control cabinet in stainless steel
- Electronic water meter
- Electronic measurement of liquor ratio
- Unloading winch & plaiter
Optional
- Second dosing tank
- Hot water stock tank, preparation of the complete process bath
- Auto self-cleaning filter
- Fast dosing system, bypass function

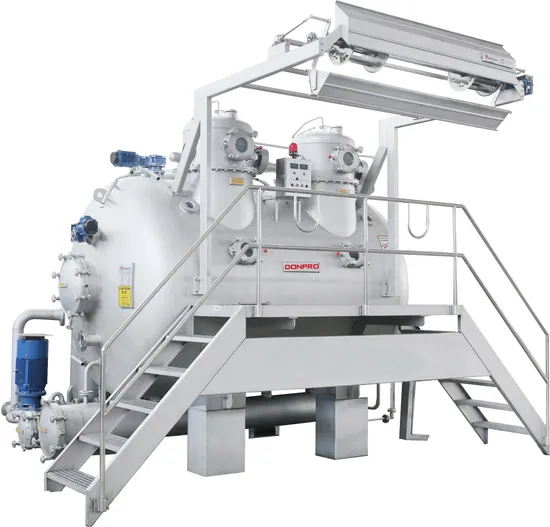

Machine picture
