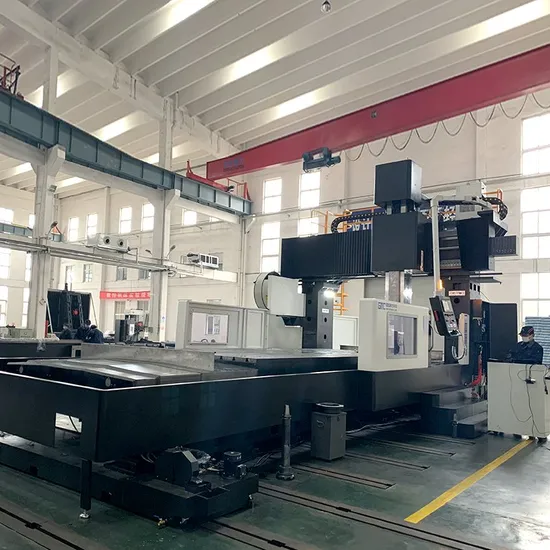

Vedon CNC Gantry Machining Center Gantry Metal Parts Processing CNC Machining Center Fanuc System Gmc2560 CNC Milling Machine with ISO CE

Product Description

Overview
GMC2560 Gantry type milling machine high Speed 3/4/5-Axis Machine Center Gearbox Gantry Machining Center
Specifications

Specifications
Model	GMC2560
X/Y/Zaxis travel	6200/3700/1000mm
Distance from spindle nose to worktable surface	250-1250(standard)450-14500r500-1500(optional)mm
Gantry effective width	3300mm
Worktable size	6000/2500mm
Width/distance of T-slot	28/220/11mm
Max.load of worktable	24000kg
Spindle speed	10-3000rpm
Main motor power	22/26kw
Spindle taper(Horizontal/Vertical)	BT50
Max.spindle torque	850N.m
Rapid feed speed(X.Y.Zaxes)	10000/12000/10000mm/min
Feed speed(X.Y.Zaxes)	1-6000mm/min
Positioning accuracy(X.Y.Zaxes)	+0.005/300jlsmm
Repeat positioning accuracy	+0.003/1000jlsmm
Overall dimension	11120*6080*5480mm
Machine weight	55000kg

Machine Details
Control pannel
Simple operation, durable, no need to worry about processing accuracy.
Tool Magazine
Accurate tool change, fasttime high efficiency, ensure the stability of the tool library.
Linear guideway
Linear guide rail, large bearing capacity, small friction loss, long service life.
Spindle
Using the original spindle, high precision, good rigidity. Prolong the service time of the spindle.
Ball screw
High movement efficiency, low fever, high speed feed.

Packaging & Shipping
Company Profile
Shandong Vedon Intelligent Equipment Co., Ltd., We Specialize In The Design And Manufacturing Of High-Precision Cnc Machines For Metalwork Processing. Including 5 Axis Machining Center, Gantry Type Machining Center, Horitonal Type Machining Center, Vertical Machining Center, Cnc Lathe Etc.. With A Strong Focus On Innovation, Quality, And Reliability, Our Advanced Cnc Equipment Enables Precision And Efficiency In Every Application. Whether For Small-Scale Operations Or Large Industrial Projects, We Deliver State-Of-The-Art Solutions Tailored To Meet The Diverse Needs Of The Metalworking Industry. Powered By Cutting-Edge Technology And A Commitment To Excellence, We Are Dedicated To Enhancing Productivity And Driving Success For Our Global Clients.
Certifications
FAQ
Q1. Could I put my LOGO on it or paint my own color?
A: Yes, As long as the order quantity reach to the MOQ.
Q2. What's your trade terms?
A: FOB, CIF, DAP or other terms are acceptable.
Q3. Could I order trail small order?
A: Yes,we have no MOQ for standard version products. The price is different from different order quantity.
Q4. What points need to be confirmed before placing the order?
A: Voltage, frequency, plug type trade term and have shipping agent or not.
Q5. What is your terms of payment ?
A: Payment≤1000USD, 100% in advance. Payment≥1000USD, 30% T/T in advance, 70% before shippment. If you have another question, pls feel free to contact us as below.
