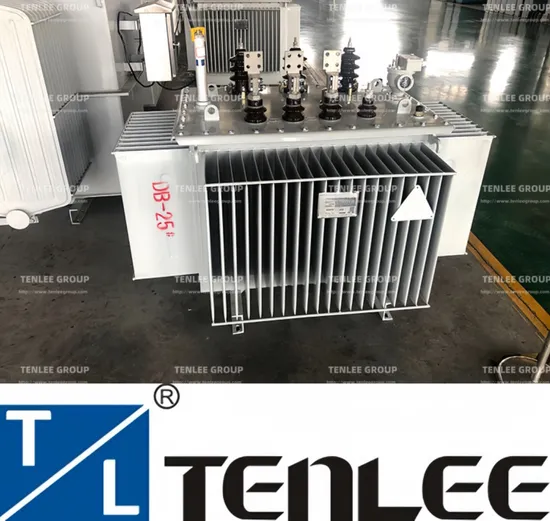

Best Price Electrical High Voltage Three Phase Oil Immersed Power Distribution Transformer

Product Description

Product Description General Description
three-phase oil immersed distribution transformer is widely applied in 10kv, 20kv and 35kv power transmission and distribution system, worked as power and lighting for residential areas, business streets, industrial and mining enterprises.
It adopts new insulation structure and anti-short circuit ability is increased. All the fasteners are anti-loose treated.
Applications
- Commerce and service industry
Commercial centre and office building
Financial industry, medical industry
Residential area
- Transportation
Airport, sea port
Bridge, tunnel
High speed way
- public utilities and electrical industry
power plant, substation
switchgear station
infrastructure and civil facility
- industrial system
Metallurgy industry
Papermaking, spinning, cement
Chemical industry, food and mine
Petroleum and natural gas
Product Parameters TECHNICAL PARAMETERS
S11-M-(30-2500)/10 three-phase oil immersed distribution transformer

Rated capacity (kVA)	Voltage combination			Connection group label	No-load loss (w)	Load loss (75ºC) (w)	No-load current(%)
	High voltage kV	Tap range	Low voltage kV
30	6 6.3 6.6 10 10.5 11	±2×2.5 ±5	0.4	Dyn11 Yzn11 Yyn0	100	630/ 600	1.5
50					130	910/ 870	1.3
63					150	1090/ 1040	1.2
80					180	1310/1250	1.2
100					200	1580/1500	1.1
125					240	1890/1800	1.1
160					280	2310/2200	1.0
200					340	2730/2600	1.0
250					400	3200/3050	0.9
315					480	3830/3650	0.9
400					570	4520/4300	0.8
500					680	5410/5150	0.8
630				Dyn11 Yyn0	810	6200	0.6
800					980	7500	0.6
1000					1150	10300	0.6
1250					1360	12000	0.5
1600					1640	14500	0.5
2000					1940	18300	0.4
2500					2290	21200	0.4

Different voltages, capacities, frequencies, tap ranges, connection groups and losses are available on request.
Packaging & Shipping standard package: wooden box
sample delivery time: 20 days
seaport: shanghai/ningbo
FAST DELIVERY
ECONOMIC DELIVERY

Company Profile Combining manufacturing experience, new technology and industrial knowledge, TENLEE aims to build advanced power distribution and protection systems.
TENLEE is specialized in manufacturing a comprehensive range of solutions from 12kv to 40.5kv for indoor/outdoor systems:
gas insulated switchgears
ring main unit
sf6 free switchgears
vacuum circuit breakers
sf6 circuit breakers
reclosers
load break switches
disconnectors
distribution transformers/power transformers
substations
Our Advantages 1. We have more than ten years export experience.
2. We have a group of experienced and professional technicians, advanced manufacturing and testing equipments, strict quality management system.
3. All the products are tested well before delivery.
4. We passed type tests.
FAQ 1. What is the payment terms:
TT, paypal, western union, etc.
2. Do you have tyoe test?
Yes, we have type test in Chinese and English.
3.What is the guarantee period?
Twelve (12) months.
