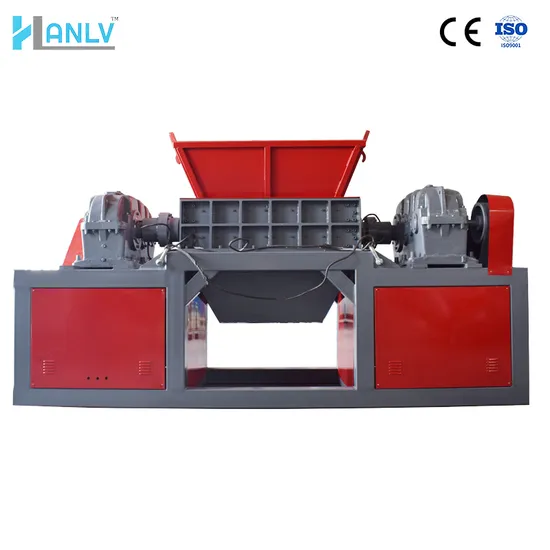

Automatic Shredder Machine for Waste Woven Bags Fabric Textile Foam Plastic Shredding

Product Description

Product Description Product Introduction
The double-shaft shredder is a widely used and relatively extensive shredding machine, suitable for the preliminary processing of many materials. Based on the nature of the material and the required output, the power required can be initially estimated. Generally, there are single motors and dual motors. Single motor is suitable for fragile materials with low power requirements. Dual motors are equipped with dual reducers, and ZSY or planetary reducers can be selected according to needs.
It is characterized by fast discharging and high efficiency, which can meet general crushing needs.
HLV has designed different ranges of double-shaft shredders for common applications with different components (reducers, blade sets, etc.) to guarantee a wide range of material adaptability. At the same time, we have the ability to custom-built machines to suit specific material and input/output requirements.

Which Materials can be Processed?
Product Highlights 1. heavy knife, high crushing efficiency, knives are made of alloy steel casting, solid and long service life.
2. frame plate thick, resistant to high torque, very strong.
3. microcomputer (PLC) automatic control, set to start, stop, reverse and overload automatic reverse control.
4. The device has a low speed, high torque, low noise, dust features can meet environmental standards.
5. easy to adjust, low maintenance, economical and durable.
6. Thickness and number of claw cutter knife can be replaced according to different materials.
Technical Data Technical Parameters

Item	Name and Description	Specification
1	Model	1000
2	Application	Thin Metal, Thin Steel plates, cable, plastic,and etc
3	Maximum Shredding Material	3mm thickness steel plates
4	Inlet Hopper Size( L W H)	1200mm*1000mm*800mm(as per customer's request)
5	Shredding Chamber Size	1040mm*700mm*450mm
6	Rotary Speed	9-11 rpm/min
7	Fixed Blades Quantity	(42CrMo) /20pcs
8	Moveable Exchangeable Blades Quantity	20pcs
9	Diameter of Blades	Teeth to Teeth Diameter 380mm
10	Blade thickness	50mm
12	Blades Material	Surfacing Welding /SKD-11
13	Hardness of Blades	52-53HRC
15	Axis Material	40Cr
16	Shredding Chamber Steel Thickness	20mm
17	Shredding Chamber Material	Q235
18	Supporting Frame Tube size	120mm*120mm*6mm
19	Main Motors / Reducer Model	30kw*2 / ZSY (GUOMAO)
20	Shredding Capacity	2-3 t/h
21	Machine weight	7t
22	Overall Dimension	4200mm*1700mm*2600mm(can design as customer request)
23	Shredder Main Steel Plate	30mm
Others
1	Bearing Brand	NSK
2	Electronic Components	PLC need has remote control, Emergency Button at each side
3	Power	As request
4	Stickers	Electric Dangerous and etc
5	Additional Free Spares	A pair of Exchangeable blade tips.

Product Details DS-800 Rubber Belt Conveyor
DCT-800 Magnet Separator:For nails
Magnetic separation devices are widely used for the removal of tramp iron from a variety of feed materials and for the beneficiation of ferrous ores.

Packaging & Delivery
Customer Feedback

Company Profile Company Profile
Hanlv is a new type of enterprise integrating R&D, manufacturing, sales and service of solid waste treatment equipment. In particular, it has extensive experience in metal recycling and plastic&wood &Tire crushing.
Hanlv has many years of experience in the solid waste recycling industry, and its equipment is sold in many countries around the world. Reliable equipment quality is our philosophy.
What do customers need?----This question has always kept us going.
Workshop View
Project Case

Contact us
We will be happy to advise you.
