FRP Molded Grating with Gritted Surface

Product Description

FRP molded grating 1.5" thick, 1.5"x1.5", grit surface. Max panel size 5'x13'
Contact:
Brief Introduction of FRP grating
Fiberglass Reinforced Plastic (FRP) is a plank shaped material cured in the matrix of unsaturated resins including isophthalic, orthophthalic, vinyl ester and phenolic, with reinforced frame of fiberglass roving through a special production process, with a certain rate of open meshes.
Excellent Properties:
1) corrosion/slip resistant 2) fire/impact retardant 3) high strength-to-weight ratio 4) easy to install and to maintain

Resin Systems	Resin Base	Description	Corrosion Resistance	Flame Spread Rating ASTM E84	Max. Oper. Temp
Type VEFR-25	Vinyl Ester	Superior Corrosion Resistance and Fire Retardant	Excellent	Class 1, 25 or less	230°F (110°C)
Type VEFR-10	Vinyl Ester	Superior Corrosion Resistance and Enhanced Fire Retardant	Excellent	Class 1, 10 or less	230°F (110°C)
Type IFR-25	Isophthalic Polyester	Industrial Grade Corrosion Resistance and Fire Retardant	Very Good	Class 1, 25 or less	221°F (105°C)
Type FG-30	Isophthalic Polyester	Food Grade Corrosion Resistance and Fire Retardant	Very Good	Class 1, 30 or less	221°F (105°C)
Type CFR-25	Ortho	Moderate Corrosion Resistance and Fire Retardant	Moderate	Class 1, 25 or less	212°F (100°C)
Type MP-5	Phenolic resin	Low Smoke and Superior Fire Resistance	Very Good	Class 1, 5 or less	356°F (180°C)
Type IFR-10	Isophthalic Polyester	Industrial Grade Corrosion Resistance and Extra Fire Retardant	Very Good	Class 1, 10 or less	221°F (105°C)
Type O-AN	Ortho	Moderate Corrosion Resistance	Moderate	No	212°F (100°C)

Fiberglass Type:

Code Name	Type	occasion applicable
E	E-glass	High strength and high corrosion required

Installations of Powergrate FRP Molded Gratings:
Surfaces of Powergrate FRP Molded Gratings:
·Meniscus(Concave)
·Smooth
·Embedded Grit
·Post-cure Grit
·Mini mesh
·Micro mesh
·Mirror surface
·Chequered plate
·Gritted solid top
Applications of Powergrate FRP Molded Gratings:
·Trench cover
·Double deck floor
·Plank road
·Operation platform
·Platform around tank
·Offshore oil platforms
·Sewage treatment
·Boats and others
Company Information:

Our Services: Nantong Josson New Material Technology Co.,Ltd. is one of the world's leading manufacturers of molded and pultruded fiberglass (FRP/GRP) grating products.
We offer a complete line of Powergrid brand products such as grating, covered grating, conductive grating, stair treads, stair tread covers, plates, and other accessories.
Our high-quality fiberglass grating products are designed and manufactured to provide long lasting performance for industrial and offshore applications.
Since our inception, Powergrid has been dedicated to the ideal of making best value Fiberglass grating products in the world through the combination of wide selections, high quality and competitive prices.
Contact us to find out the secret to our success and what makes us the preferred partner of many world's leading companies in composite and grating industries.
Advantages:
1. More than 100 pcs molded grating molds & 25 pcs pultrusion lines.
2. 53,000 square meters factory and 200 employees.
3. DNV,ISO certified. ABS,Intertek tested.
4. Annual sales revenue:12,000,000 USD
Any pending order, pls kindly send us your specifications for quotation. We will try our best to give you great service.

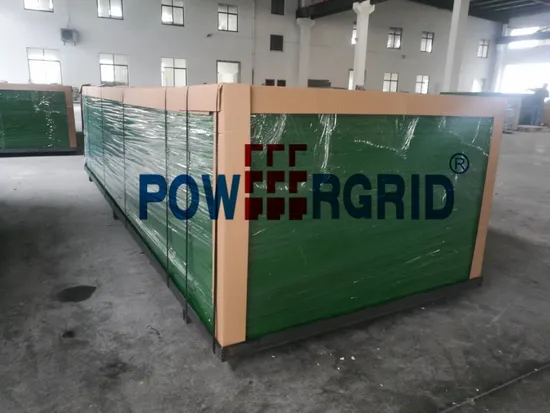

Packing/Shipping/Testing:
