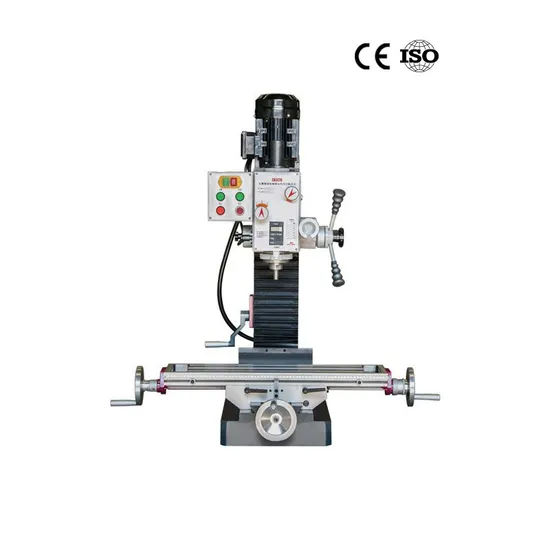

Milling Drilling Machine Zx32g Manual Mills Table Top Milling Machine Zx32g High Precision for Metal Working
| Negotiable | 1 Set (MOQ) |
Basic Info.
Model NO.
ZX32G
Type
Worktable Milling Machine
Structure
Rocker
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Automatic Grade
Manual
Precision
Precision
Certification
CE
Condition
New
Max Drilling Capacity
32mm
Max Tapping Capacity
16mm
Max Face Milling Capacity
63mm
Transport Package
Full Closed Plywood Box
Trademark
SENMO
Origin
China
HS Code
84592900
Product Description
| Milling Drilling Machine ZX32G Feature |
| ·High precision grinding all steel spindle |
| ·High strength with square column |
| ·Good strength gear grinding, low noise |
| ·Headstock tilts left and right |
| ·Wide electrical box, easy operation |
| ·High precision manual feeder |
| ·Depth ruler, easy operation and read |
| Specifications | ZX32G |
| Max drilling capacity | 32mm |
| Max tapping capacity | 16mm |
| Max face milling capacity | 63mm |
| Table size | 700x190mm |
| Spindle taper | MT3/R8 |
| X-axis travel | 190mm |
| Y-axis travel | 320mm |
| Z-axis travel | 310mm |
| Spindle travel | 75mm |
| T-slot size | 12mm |
| Spindle speed range | 60-1650rpm |
| Headstock tilt left and right | 90° |
| Column size | 150x130x690mm |
| Base size | 550x340mm |
| Max. distance from spindle center to column | 320mm |
| Max. distance from spindle center to table | 400mm |
| Motor power | 750W |
| N.W/G.W | 170/200kg |
| Standard Accessories |
| Digital depth ruler |
| Draw bar |
| Drill chuck and arbor |
| Oil gun |
| Toolbox with tools |
Our Services
What we can do for you? 1. Experienced staffs answer all your questions in time. 2. Customized design is available, more details to let you know our machines well. 3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
