Stainless Steel High Efficient 3 Points Hanging 4/5/6/7 Discs Cutting Grass Hydraulic Adjust Lawn Tractor Mower Rotary Mower

Product Description

Products Description

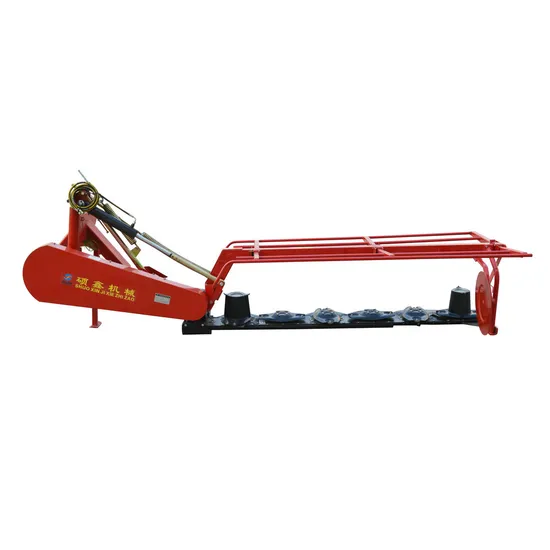

Disc Mower
is a popular type of mower that uses a set of rotating discs to cut through grass and other vegetation. It has gained popularity in recent years due to its ease of use, efficiency, and versatility.

The disc mower consists of a set of horizontally-mounted cutting discs that rotate perpendicular to the ground. The cutting discs are equipped with knives that cut through the grass and other vegetation, which is then collected on the mower's bed. Disc mowers are available in a range of sizes and configurations to accommodate different needs and requirements.
Disc Mower range consists of 4 discs, 5 discs, 6 discs and 7 discs. Cutting width covers 1.7/2.1/2.4/2.8 meters.
Width 1.7 Meters With 4 Discs

Width 2.1 Meters With 5 Discs

Width 2.4 Meters With 6 Discs

Width 2.8 Meters With 7 Discs

Features and Components of Disc Mower The key features of a disc mower include its cutting discs, knives, bed, and hitch. The cutting discs are responsible for cutting the grass and other vegetation, while the knives ensure a clean cut. The bed is located underneath the cutting discs and collects the cut vegetation. The hitch connects the mower to the tractor or other machinery.
Hydraulic lift is standard configuration

Iron guide and plastic cover are standard configuration

Disc with 2 kinves/blades

Disc with 3 kinves/blades

Details Images
3 point linkage mounted & PTO shaft
3 point linkage mounted for hanging and PTO shaft as power support
Heavy 4 belts drive systems & Steering shaft drive
used to power Disc Mowers avoids expensive maintence common to most mower types, and enables long periods of low cost operation.
Iron Belt protection cover
Iron with painting cover to protect the 4 belts
Manganese steel blade
High Strength stainless steel rust resistance knives
Product Paramenters

Model	9G-1.7	9G-2.1	9G-2.4	9G-2.8
Number of Disc	4	5	6	7
Knives/disc	2/3	2	2/3	2
Working Width(m)	1.7	2.1	2.4	2.8
Dimension(mm)	3200*1250*1350	3700*1250*1350	4000*1250*1350	4400*1250*1350
Weight(kg)	475	480	510	566
Hydraulic	Standard
Iron Cover	Standard
Matched Power(HP)	40-90	50-120	70-130	90-140
working rate ha	1.3	1.6	2	2.3

Our Advantages
Advantages of Disc Mower One of the main advantages of the disc mower is its ease of use. It is lighter and more maneuverable than the drum mower, making it easier to transport and navigate on rough terrain. Disc mowers are also less prone to clogging, which helps to ensure a smoother and more efficient mowing process.
Additionally, the cutting height is easily adjustable on most disc mowers, which increases their versatility.

Comparison of Drum Mower and Disc Mower		Recommendations for Choosing the Right Mower
Cutting Mechanism	The drum mower uses horizontally mounted drums while the disc mower uses rotating discs perpendicular to the ground.
Weight	The drum mower is typically heavier than the disc mower, making it more difficult to maneuver and transport.
Clogging	The disc mower is less prone to clogging than the drum mower.
Cost	The disc mower is typically more expensive than the drum mower.
Maintenance	The disc mower requires more frequent maintenance and replacement of cutting discs and knives than the drum mower.

Mowers have been performance tested and proven to reduce plugging and wrapping in both light and heavy hay crops.

Each cutter bar has been designed with added stiffness to provide exceptional strength in all working conditions.

Oval discs allow for superior flow of material over the cutter bar and a better distribution of your hay crop.

Robust, double-sided steel knives are perfectly timed to overlap at just the right distance to provide a smooth, clean, clog-free cut.

The gear-driven cutter bar houses oiled and sealed bearings to reduce contamination and provide ease of maintenance.

A hydraulic mower bar cylinder effortlessly lifts the unit for end of field turns and transport.

Ground pressure of the cutter bar can be easily adjusted for a variety of ground conditions.

Crop dividers come standard to provide clear distinction between cut and standing hay.

Mowers feature a mechanical breakaway to protect units from damage when striking an unexpected obstacle.

Company Profile






Shuoxin, Sure thing.
Hebei Shuoxin Machinery Manufacturing Co., Ltd has been in the agricultural machinery industry for more than 30 years, the product range covering spraying machines, fertilizer spreaders, manure spreaders, mowers, rakes, land levellers and so on. In the 30 years' service for agriculture field, Shuoxin has grown into an enterprise that integrates multiple business modules such as Design, Manufacture, Service and Information Survey. Shuoxin agricultural machinery have done a important work to nutrition supply and plant diseases & insect pests control for crops such as wheat, cotton, corn, rice, orchards and vegetables. With the ISO System certificates and CE production certificates, Cooperating with Shuixin can guarantee the partners with advanced machine products, reduced labor cost, improved work efficiency and promoted product revenue.
Certifications
Product packaging
Iron Farme Packing
All the machines are fixed in the Iron Frame by steel wire, the Frame use the steel which is thicker than 3mm. Strong enough to carry and protect the machine.
Black plastic film will also protect the machine from rain and sun shine.

All the frames is welded according to the machine size, to make sure the minimum size and weight.
