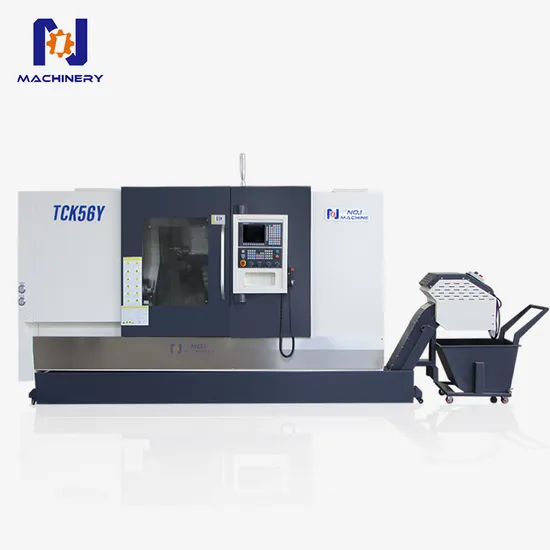

High Precision Inclined Metal Turning X/Y/Z/C Axis Tck56y Low-Price Slant Bed CNC Lathe Machine

Product Description

Product Description
The cnc turning center has X/Y/Z/C four linkage axes, and the travel of Y axis is ± 55mm. It can also be processed by C axis linkage.It is used to process revolving parts with complex shape and high precision requirements. The whole process is completed by clamping at one time. integrates turning, milling, drilling, boring, tapping and other functions, and can perform milling,drilling, tapping and other composite processing of end and side faces.
Product Parameters

Name		Unit	TCK56Y
Maximum turning diameter on the bed		mm	560
maximum cutting length		mm	500/1000
Maximum cutting diameter		mm	280
Maximum turning diameter on the skateboard		mm	350
Standard cutting diameter		mm	280
Spindle end type and code			A2-6
Spindle hole diameter		mm	65
Maximum passing bar diameter		mm	50
single spindle Headstock	Spindle speed range/ Spindle maximum output torque	r/min/Nm	50~4500
Mainly motor power	30 minutes/continuous	kW	11/15
Standard chuck	Chuck diameter	inch	8²
X-axis rapid traverse speed		m/min	30
Y-axis rapid traverse speed		m/min	12
Z-axis rapid traverse speed		m/min	30
X-axis travel		mm	200
Y-axis travel		mm	±55
Z-axis travel		mm	500-1000
Standard Tool Holder Form			Horizontal 12-station
Tailstock sleeve stroke		mm	150/900
Tailstock spindle taper taper		MT	5#
Machine weight		Kg	4300
Machine tool dimensions		mm	3570*1860*1850

Detailed Photos
1. Adpot 45° one piece slant bed casting structure
2.High speed Taiwan spindle unit, spindle speed 4500rpm.
3.Famous Nanjing/Taiwan Screw
4.X and Z axis Adopts Taiwan Linear rails
5.GSK control system, optional Siemens/Fanuc/Mitsubishi
6.8-station hydraulic turret/12-station optional
7.A2-6 spindle/A2-8 optional
8.GSK original servo main motor
