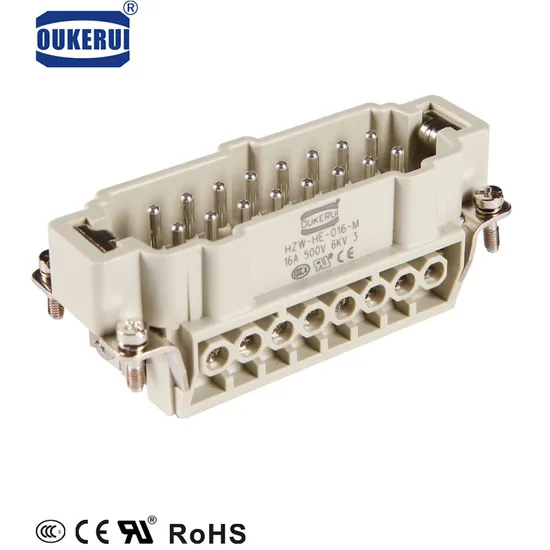

Hot Selling 16 Pins, Widely for Hot Runner Use Replace Harting, Heavy Duty Connector
| US$2.00-6.00 | 10 Sets (MOQ) |
Basic Info.
Model NO.
HZW-HE-016M
Application
Conduct Electricity, Transmission of Electrical Signals, Automation Machinery and Equipments
Character
High Temperature Resistance
Production Process
Injection Molding
Shape
Rectangular
Certification
UL
Contacts Surface Treatment
Silver/Glod Plated
Contact Material
Copper
Housing Material
Die-Casting Aluminum Alloy
Housing Coating
Anti-Corrosion Powder Spray
Working Environments
IP65 for Various Harsh Environments
Terminal Type
Crimp
Contact Cost
Pay Additional Cost for Crimp Contacts
Crimp Tooling
Available
Fitting Housing
H32b Housing Series
Packing
Poly Bag Plus Carton
Delivery Time
Within 5 Days
Transport Package
Polybag and Double Cartons
Specification
CE, UL, ROHS
Trademark
Oukerui
Origin
China
HS Code
8536900000
Production Capacity
3000pieces Per Day
Product Description
1.We keep a frequency of being on various professional trading shows each year including domestic fairs and international ones.2.More than ten years accumulated manufacturing expertise only for creating a single product-----Heavy Duty Connector and as always, to create more value for our business partners as well as our terminal users.
3.As industrial 4.0 version is going on and on, our products are becoming more and more popular by offering different electrical connection solutions for your electrical facilities from traditional machines to more hi-tech robotics and automation control systems. 4.A reliable quality forges the value of OUKERUI brand.
Exploded view of Oukerui HDC Connectors
SPECIFICATION | |||
| Model No. | HZW-HE-016M | Gender type | Male |
| Pins | 016+PE | Contacts' surface processing technical | Silver or Gold Plated |
| Terminal type | Crimp Terminal | Mounting type | Bulkhead/Surface/ cable to cable |
| Housings material | Dia casting aluminum alloy | Insert Block | Top grade PC |
| Working Voltage | 500V | Working Current | 16A |
| Rated Impulse Voltage | 6KV | Temperature Bearing Range | -40ºC~+125ºC |
| International protection(IP) grade | IP65 | Pollution Degree | 3 |
| Flammability | V0 | Working Voltage Acc to UL/CSA | 250V |
| Mechanical Life Span | Min 500 times | Trademark | Oukerui |
| Warranty | 1 Year | Transport packing | Carton |
| Origin | China | HS code | 8530900000 |
SPECIFICATION OF CONTACT | |||
| Material | Copper Alloy | Surface Treatment | Silver/Gold Plated |
| Terminal | Screw/Crimp Terminal | Wire Gauge | 0.10-2.5mm2(AWG26-14) |
| Screw terminal tightening | 0.5Nm | Stripping length | 7-9mm |
