Eglobal Rugged Embedeed Mini PC Intel Core I3 I5 I7 Win10 PRO Win11 2LAN 6COM Mini Computer Industrial PC for Medical Equipment

Product Description

Product Description Model: G8-4287U
CPU: Onboard Intel Haswell 22nm CPU Intel Core i5-4287U 2.6GHz Max 3.1GHz Dual Cores Four Threads 3MB cache TDP 28W Intel® Iris® Graphics 5100.
Model: G8-4500U
CPU: Onboard Intel Core i7-4500U 1.8GHz Max 3.0GHz(Turbo boost Technology) Dual Core Four Threads
Model: G8-8250U
CPU: Intel KABYLAKE 14nm CPU Intel Core i5-8250U 1.6GHz Max 3.4GHz Quad Core Eight Threads 6MB cache TDP 15W Intel® UHD Graphics 620.
Model: G8-7267U
CPU: Onboard Intel KABYLAKE 14nm CPU Intel Core i5-7267U 3.1GHz Max 3.5GHz(Turbo boost Technology) Dual Cores Four Threads 4MB cache TDP 28W Intel® Iris®
Plus Graphics 650.
Model: G8-8550U
CPU: Onboard Intel Kaby Lake R 14nm CPU Intel Core i7-8550U 1.8GHz up to 4.0GHz(Max TurboFrequency) 4 Core 8 Threads 8MB cache TDP 15W Intel® UHD Graphics 620.
Model: G8-10210U
CPU: Onboard Intel Comet Lake Refresh Intel Core i5-10210U Processor, 6M Cache, 1.6GHz up to 4.20GHz (Turbo boost Technology) 2 Cores 6 Threads TDP 15W Intel® UHD Graphics.
Model: G8-10510U
CPU: Onboard Intel Comet Lake Refresh Intel Core i7-10510U Processor, 8M Cache, 1.8GHz up to 4.9GHz (Turbo boost Technology) 4 Cores 8 Threads TDP 15W Intel® UHD Graphics.
Model: G8-1135G7
CPU: Onboard 11th Gen 10nm CPU Comet Lake Intel Core i5-1135G7 4 cores 8 threads 2.4GHz up to 4.2GHz 6MB cache TDP 12W Intel Iris Xe Graphics.
Model: G8-1165G7
CPU: Onboard 11th Gen 10nm CPU Comet Lake Intel Core i7-1165G7 4 cores 8 threads 2.8GHz up to 4.7GHz 12MB cache TDP 12W Intel Iris Xe Graphics.
Model: G8-1235U
CPU: Onboard Intel Alder Lake 7nm CPU Intel Core i5-1235U 1.3GHz up to 4.4GHz (Turbo boost Technology) 10 Cores 12 Threads 12MB cache TDP 15W Intel® Iris® Xe Graphics eligible.
Model: G8-1245U
CPU: Onboard Intel Alder Lake Core i5-1245U 1.6GHz up to 4.4GHz(Turbo boost Technology) 10 Core 12 Threads 12MB cache 15W TDP Intel® Iris® Xe Graphics eligible.
Model: G8-1255U
CPU: Onboard Intel Alder Lake Core i7-1255U 1.7GHz up to 4.7GHz(Turbo boost Technology) 10 Core 12 Threads 12MB cache 15W TDP Intel® Iris® Xe Graphics eligible.
Model: G8-1265U
CPU: Onboard Intel Alder Lake Core i7-1265U 1.8GHz up to 4.8GHz(Turbo boost Technology) 10 Core 12 Threads 12MB cache 15W TDP Intel® Iris® Xe Graphics eligible.
Model: G8-1355U
CPU: Onboard Intel Raptor Lake 7nm CPU Intel Core i7-1355U 1.7GHz up to 5.0GHz (Turbo boost Technology) 10 Cores 12 Threads 12MB cache TDP 15W Intel® Iris® Xe Graphics eligible.Product Highlight:- Fanless system without cooling fan, Brushed Full Aluminum Alloy shell for heat dissipation, fit for industrial grade field, work as long as 24 hours.
- High-end Industrial PC less than 1% defective rate, super long lifetime and 3 years warranty.
- 2 x Intel i225-V 2.5G LAN, 6 x DB9 COM, 4 x COM support RS422/RS485, PS/2, GPIO rich interfaces for different equipments.
- One embedded SIM card slot onboard for 3G/4G Wi-Fi module.
- Support VGA + HDMI 1.4 dual display output synchronously.
- Support Watchdog, AWAL, RTC, WOL, PXE, Reset functions.

Basic Information
CPU	Intel Core i3/i5/i7
TDP	Refer to the CPUS
BIOS	American Megatrends Inc
Chipset	Refer to the CPU
Memory Specifications
Memory Types	4th 2 x SO-DIMM DDR3L Slot 8-11th Gen 2 x SO-DIMM DDR4 Slot 12-13th Gen 2 x SO-DIMM DDR5 Slot
OS	Windows 10/Win11/Linux/WES10
PXE	YES
Audio	Intel High Definition Audio Controller
Network	4-6th Intel(R) i210/i211 Gigabit Network 7-13th Onboard Intel i225-V 2.5G Network Connection
Processor Graphics	Refer to the cpus
Wi-Fi:
Module	1 x mini PCIE-half port for Wi-Fi/Bluetooth module 1 x mini PCIE-full port for 3G/4G/Wi-Fi/Bluetooth module 1 x Extended IO, support LPC, USB, PCIE
Antenna	2 x inner RF cables and 2 x external antennas
Input/output port
Switch	1 x Power On/Off Switch
Power	1 x 3pin phoenix terminal power supply input, support 9~36V
Button	1 x ATX/AT quick switch
USB	4 x USB3.0, 2 x USB2.0
PS/2	1 x PS/2(keyboard and mouse 2 in 1)
Display	1 x VGA, 1 x HDMI 1.4
LAN	2 x Intel GbE RJ45 LAN
COM	6 x DB9 COM(4xCOM support RS422/RS485)
GPIO	1 x GPIO( 7pin input, 7pin output)
Audio	1 x MIC, 1 x SPK
SIM	1 x embedded SIM card slot onboard
Others	1 x Reset, 1 x CMOS clear button, 1 x 2pin Phoenix terminal power supply input
Storage
MSATA	1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s 1 x M.2 slot for NVME 2280 SSD, support 6Gb/s
SATA	1 x SATA3.0 slot for SATA HDD or SSD
Product Dimension & Details:
Case Material	Black aluminum alloy
Dimension	PC size 249*150*86mm
	Package size 325*295*140MM
Weight	NW 2.2KG, GW 3.5KG
Mounting	4 mounting holes one the case baseplate
Functions	Watchdog, One key reset, AWAL, RTC, WOL(ATX mode)
Cooling Mode	Fanless
Package Content
Standard	1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag,
Optional	Wi-Fi antennas, 1xHDMI cable, 1xLong Screws Bag
Power and Working Environment
Input	100-240V AC/50-60Hz
Output	DC +9V~+36V, recommend 19V/5A
Operating Temperature	-20°C/+60°C
Storage Temperature	-30°C/+70°C
Relative Humidity	10%~90% @30°C(non-condensing)

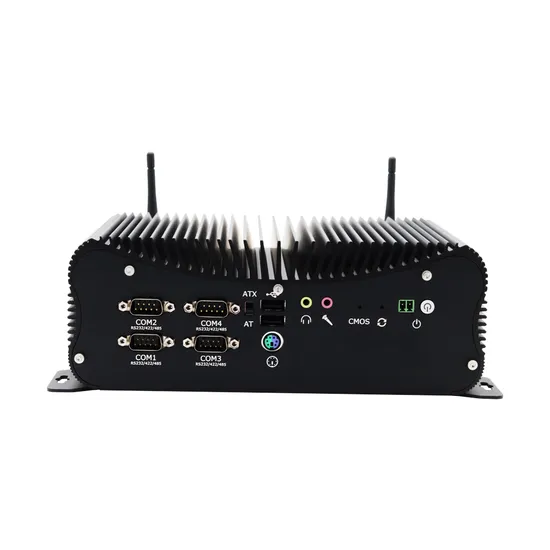

Detailed Photos
