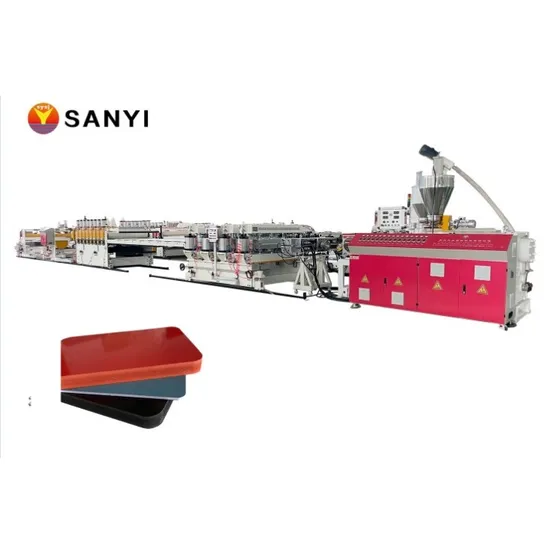

PVC WPC Foam Board Manufacturing Machine for Door Cabinet Furniture Board Wall Panel Production
| US$95,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
80/173
Type
Sheet Extruder
Plastic Processed
PVC
Product Type
Extrusion Molding Machine
Feeding Mode
One Feed
Assembly Structure
Integral Type Extruder
Screw
Twin-Screw
Engagement System
Full Intermeshing
Screw Channel Structure
Deep Screw
Exhaust
Exhaust
Automation
Automatic
Computerized
Computerized
Product Name
PVC/WPC Crust/Celuka Foam Board/Sheet Machine
Raw Material
PVC/CaCO3/Wood Powder
Usage
Cabinet, Furniture, Door, Wall Panel, Advertising
PVC Board Thickness
3-40mm
Max Capacity
400kgs/H-1200kgs/H
Motor
Siemens
Invertor
Siemens
Certification
CE/ISO/TUV
PVC Sheet Size
1220*2440mm
Surface Treatment
Embossing/Transfer Print/Lamination
T-Die Mould
Jc-Times, Eko, Weilei
Screw and Barrel
Conical Double Screw From Zhoushan
Transport Package
Wooden Package
Specification
26*2.5*2.5m
Origin
Qingdao
HS Code
84772090
Production Capacity
15set/Month
Product Description
| Production line&Auxiliary machines: | ||||
| Part a: PVC WPC wood plastic composite celuka skinning crust foam board making machine production line extrusion line | ||||
| NO. | Machine name | Type | Qty. | Note |
| 1 | Conical double screw extruder | SJSZ80/156(400kg/h) SJSZ80/173 (600kg/h) SJSZ92/188(800kg/h) | 1set | with spring up loader,screw&barrel from Zhoushan, gearbox from Jiangyin. |
| 2 | Electric control system | 1set | With full sets Siemens electrics: frequency converter,AC contactor,all breakers,relay,buttons,etc. | |
| 3 | T-die mould | 1320mm | 1set | JC Times or Eco or Weilei |
| 4 | Calibration unit | 1set | 4 or5 pairs with size:1500*600*100mm | |
| 5 | Cooling bracket device | 1set | 5000mm(length)*1500mm(width) | |
| 6 | Haul-off device | 1set | 8or 10paris | |
| 7 | Shearing unit in length and width | 1set | Siemens motor | |
| 8 | Dust vacuuming unit | 2set | ||
| 9 | Stacker | 1set | 2500mm*1750mm | |
| Part b: Auxiliary machines | ||||
| NO. | Machine name | Qty. | Note | |
| 10 | Hot&cooling mixer | 1set | 500/1000L or 800/2500L | |
| 11 | 380Crusher | 1set | Capacity:350kgs/h | |
| 12 | 660Grinder | 1set | Capacity:300-400kgs/h | |
FAQ
Q1---Where is your factory located?
---Our factory is located in Qingdao City, Shandong Province
Q2---How many employees of your factory?
---We have about 100 staffs including the Production/R&D/Sales/Quality/Warehouse/After-Sales Service etc
Q3---Besides the PVC WPC foam baord Machine,if you also produce PVC Profile/Pipe etc
---No-We only focus on the PVC WPC foam board(sheet) Machine with at least 12 years experience
Q4---How many engineers in service?
---We have 11 professional engineers in service and they all have the passport
Q5---If you will start the machine before delivery?It's free or we need to pay?
---Of course,we must start the machine for your inspection until you satisfy with our machine and it's free.
