1600mm Feeding Width, 350kw, 35ton/Hour Capacity Rice Hull, Corn Chipper
| US$19,500.00-65,800.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
XT1400-800
Automatic Grade
Full-Automatic
Warranty
1 Year
Running Speed
800r/Min
Power Type
Electric/Diesel
Finished Chip Size
30mm-50mm or Customized
Feeding Conveyor
6m
Discharge Conveyor
10m
Output Capacity
20ton/Hour
Rotor Length
960mm
Transport Package
Standard Exporting Packing
Specification
10500mmx3300mmx3000mm
Trademark
XT
Origin
China
HS Code
84659600
Production Capacity
200 Set/Month
Product Description

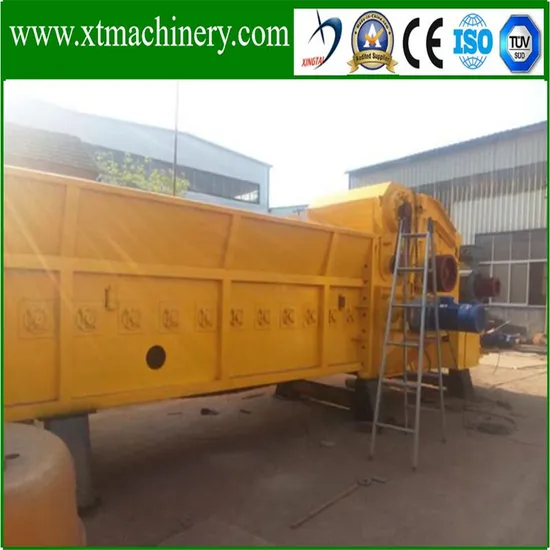

Wood chipper machine brief introducitonThe wood chipper machineis a special equipment of biomass energy power plant for fuel reserve. With the widely raw material it can be crushed, such as all kinds of trees, undersized log, timber cutting residues such as branches, wood processing residues (such as slab, batten, log core, building templates and so on), Also some non-wooden raw materials (such as waste of flax, reed, bamboo, maize straw, cotton stalk, etc.).
With the more than ten years manufacturer experience of wood drum chipper, According to the raw materials characteristics and biomass energy plant's requirement for material particle size, we design and develop this series machine,and has the feature of widely raw material adaptability, high production capacity, reasonable structure, easy operation, safety and reliable, easy maintenance and so on. It's the most ideal biomass crusher equipment at present in the world.
| To cut big raw material into small chips with size 25mm-50mm | ||||||
| Model | XT1400-500 | XT1600-600 | XT1400-800 | |||
| Rotor diameter | 800mm | 960mm | 1000mm | |||
| Blade numbers | 2-4pcs knife blades/32 hammer baldes | 4-6pcs knife blades/40 hammer baldes | 4-6pcs knife blades/40 hammer baldes | |||
| Running speed | 760r/min | 800r/min | 900r/min | |||
| Mesh screen size | 30mm-50mm or customerized | 30mm-50mm or customerized | 30mm-50mm or customerized | |||
| Main power | 200KW | 220KW | 250KW | |||
| Feeder power | 11KW+7.5KW | 11KW+7.5KW | 11KW+7.5KW | |||
| Discharge power | 4KW+5.5KW | 5.5KW+11KW | 5.5KW+11KW | |||
| Oil power | 3KW | 4KW | 4KW | |||
| Feed inlet size | 1400mmx500mm | 1600mmx600mm | 1400mmx800mm | |||
| Feed inlet conveyor | 4m length chain plate conveyor | 5m length chain plate conveyor | 6m length chain plate conveyor | |||
| Maximum raw material size available | 1300mmx420mm | 1500mmx520mm | 1300mmx700mm | |||
| Output capacity | 12-15Ton/Hour | 15-20Ton/Hour | 20-25Ton/Hour | |||
| Machine size(LxWxH) | 7500mmx2600mmx2400mm | 8900mmx2800mmx2600mm | 10500mmx3300mmx3000mm | |||
| Machine weight | 16.5Tons | 20.1Tons | 26.3Tons | |||
| Raw material available: Waste contruction board, waste pallet, original logs, tree branch, wood slab, straw, reeds, bamboo...etc | ||||||
