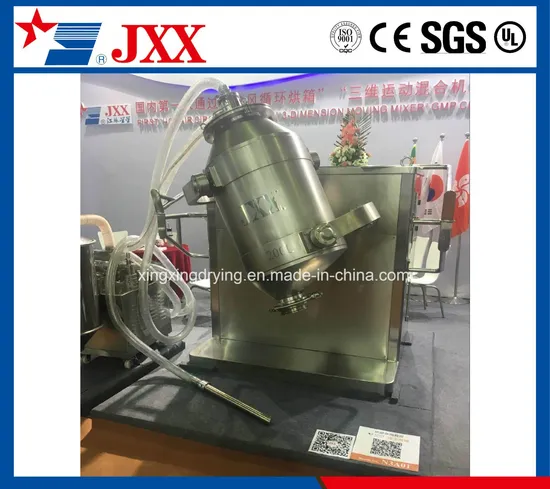

Three Dimensional Motion Mixer with Short Mixing Time

Product Description

Company introduction: Jiangsu Xingxing Drying Equipment Co., Ltd
Characteristics
The barrel for charging the materials is driven by the driving shaft. The barrel body carries on the repeated level movement, rotation, turning and other complex movements so that the materials will carry out the three dimensions and complex movements along the barrel body so as to realize the various movements of the materials. Through disseminating, gathering, agglomerating and mixing to realize uniform mixing.
Material to be dried
1. The mixing barrel of the machine moves in multi-direction. For the materials,there is no centrifugal function, without the specic gravity segregation and the layer division. For each of build-up phenomenon, there is the remarkable weight rate. The mixing rate is high. The machine is the desired one of various mixers at present.
2. The material charge rate of barrel is big. Maximum rate can be up to 90% (while normal mixer has only 40-50% of charge rate.). It is high in ef ciency and short in mixing time.
3. The barrel adopts arc shape connections and its well polished.
4. The machine is used for mixing the powder state and grain state materials to achieve high uniformity in the pharmaceutical, chemical, food, light-industry , electronic, mechanical, metallurgical, nation defense industries and other science and technology institutes.
Technical Parameter

Spec	HS-5	HS-15	HS-50	HS-100	HS-200	HS-400	HS-600	HS-800	HS-1000	HS-1200	HS-1500	HS-2000
Volume of barrel (L)	5	15	50	100	200	400	600	800	1000	1200	1500	2000
Charge volume (L)	4.5	13.5	45	90	180	360	540	720	900	1080	1350	1800
Charge weight (kg)	1.5-2.7	4-8.1	15-27	30-54	50-108	100-216	150-324	200-432	250-540	300-648	400-810	500-1080
Rotation speed of main shaft (r/min)	0-20	0-20	0-20	0-20	0-15	0-15	0-13	0-10	0-10	0-9	0-9	0-8
Motor power (kw)	0.25	0.37	1.1	1.5	2.5	4	5.5	7.5	11	11	15	18.5
L×W×H (mm)	600 ×1000 ×1000	800 ×1200 ×1000	1150 ×1400 ×1000	1250 ×1800 ×1550	1450 ×2000 ×1550	1650 ×2200 ×1550	1850 ×2500 ×1750	2100 ×2650 ×2000	2150 ×2800 ×2100	2000 ×3000 ×2260	2300 ×3200 ×2500	2500 ×3500 ×2800
Weight (kg)	100	200	300	800	1200	1200	1500	1700	1800	2000	2400	3000

CERTIFICATE
Service:
pre-sale service
We Invite customers to visit our company and communicate on technical requirements face to face.
sale service
Responsible for debugging the equipment according to customers' requirements of various technical data. Our engineers will train our customers about equipment features and operation key points to make sure the equipment running in the best condition.
after-sale service
We provide installation, debugging, maintenance, training and other services; Provide relevant technical data, equipment, software and related GMP certification materials;Set up after-sales service hotline, and arrange personnel to visit customers every year to know more customer needs,like customer operation problems in the process of production equipment.
quality promise
Our company promises strictly operate the ISO9001 quality system certification standards and pharmaceutical equipment GMP audit requirements,promise we provide new equipment. Advanced technology,good quality.Equipment operation safe reliable, affordable, easy to maintain.
Equipment warranty period is one year,all the parts for the equipment choose well-known brand.
During the warranty when equipment have problem in quality like equipment failure and damage,the company for free maintenance or replacement.
We look forward to cooperating with partners from all over the world to build win-win
cooperation relationship in long term. Welcome for your visiting.
