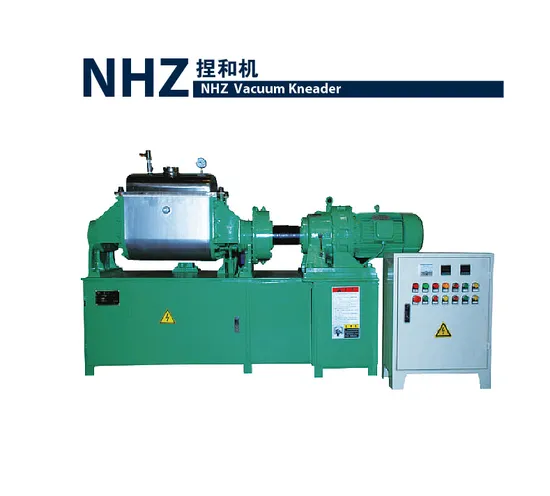

Lab Size Electrical Heating Vacuum Kneader (sigma mixer) for Ink, Silicone Rubber, CMC
| US$2,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
NHZ1, NHZ2, NHZ5, NHZ10, NHZ40
Application Area
Chemical
Certification
CE
Condition
New
Mixing Drum Shape
Bowl
Stirring Type
Forced
Working
Convection Mixer
Tilting Discharge
Bottom Screw Discharge
PLC Control
Programm Control
Kneader with Filter
Mesh Filter
Small Batch
Lab Type
1L Capacity
5L Batch Size
Steam Heating
Electrical Heating
Heating and Cooling
Water Cooling Jacket
Mixer Type
Horizontal Ploughshare Mixer
Layout Type
Horizontal
Operating type
Continuous Operating
Transport Package
Wooden Case
Specification
1L-50L
Trademark
MTE
Origin
Nantong
HS Code
8479820090
Production Capacity
100-1000
Product Description
Brief:
Our factory is the top manufacturer of kneader in China for over 30 years, our kneaders are widely in domestic Chinese market as well as aboard. Our double -blade kneader is available with variety of blades in different shapes as well as with number of discharging methods and mixing conditions. This double-blade kneader has already achieved considerable renown in a wide range of industries that deal with high and medium viscosity materials .
Industries we supplied:
Silicone Compound/Rubber Mould Rubber Sealant Hot melt adhesive Ink Pigment CMC/Cellulose Plasticine/Silly Putty Chewing Gum Electrode Paste Carbon Pencil leads Pharmaceutical
Variety of options:
1. Discharging Method
Tilting discharging
Screw extruding discharging with mesh straining
Ball valve/bottom plate ( manual, electrical, pneumatic)
Both tilting and screw extruding ( PATENT)
2. Heating
Electrical heating
Steam heating
Oil heating
3. lid sealing
Manual screw
Pneumatic
4.Vaucuum
Water-loop vacuum pump
Rotary Vane Pump
5. Cooling
Blade water cooling
Mixing vessel jacket water cooling
Plsease send e-mails for detaild parameters and drawings!
| Model | Total volume | Working volume | Motor power | Discharge method |
| NHZ-1 | 1 | 0.6 | 0.75 | Manual tilting |
| NHZ-2 | 2 | 1.3 | 0.75 | Manual tilting |
| NHZ-5 | 5 | 3 | 1.5 | Manual tilting |
| NHZ-10 | 10 | 6 | 2.2 | Manual tilting |
| NHZ-40 | 40 | 24 | 3-5 | Manual tilting |
| NHZ-100 | 100 | 60 | 5-7.5 | Titling or bottom valve |
| NHZ-200 | 200 | 120 | 7.5-11 | Titling or bottom valve |
| NHZ-300 | 300 | 180 | 11-15 | Titling or bottom valve |
| NHZ-500 | 500 | 360 | 15-22 | Titling or bottom valve |
| NHZ-1000 | 1000 | 720 | 22-45 | Titling or bottom valve |
| NHZ-1500 | 1500 | 900 | 30-45 | Titling or bottom valve |
| NHZ-2000 | 2000 | 1300 | 45-75 | Titling or bottom valve |
| NHZ-3000 | 3000 | 1800 | 55-90 | Titling or bottom valve |
| NHZ-4000 | 4000 | 2400 | 75-132 | Bottom valve |
| NHZ-5000 | 5000 | 3000 | 90-160 | Bottom valve |
| NHZ-6000 | 6000 | 3600 | 110-200 | Bottom valve |
