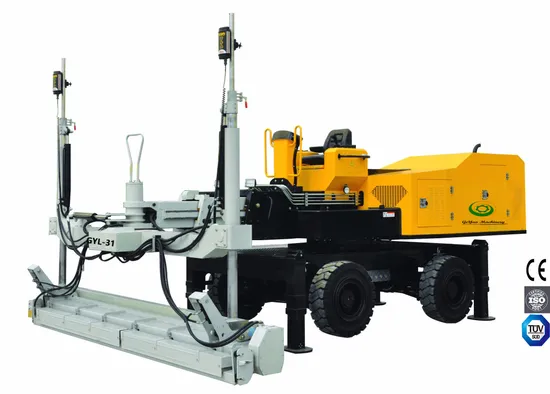

Super Good Imported Main Parts Confirguation Laser Concrete Screed Gyl-31
| US$130,000.00-145,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
GYL-31
Machining Process
Hydraulic
Structure
Cylinder Type
Productivity
240m²/h
Certification
ISO9001: 2000, CE, TUV SGS
Condition
New
Color
Orange
Engine Type
Yanmar
Power Kw(HP)
57.3kw/2400rpm
Weight Kgs(Lbs)
8200kgs
Dimension(L*W*H)
5200×4350×3700mm
Boom Reach
6m
Head Size
5.6
Fuel Tank Volume
150L
Warrenty
1 Year
Laser Generator
Topcon
Laser Receiver
Topcon
Transport Package
in Steel Frame
Trademark
geyo
Origin
China
HS Code
8479102100
Production Capacity
100PCS/Year
Product Description
Super good Imported main parts confirguation laser concrete screed GYL-31The Laser Screed is used in large area concrete construction, such as the modern industrial workshop, the large market, storage, airport, the plaza, and so on. The Laser Screed can satisfy the construction requirements of large area and high planeness and levelness.
Specification:
| Model | GYL-31 |
| Type | Boom type |
| Engine | |
| Model | Yanmar 4TNV98T-ZNLYS |
| Type | Diesel Engine, Liquid cooled, 4 stroke, 4 cylinder |
| Power | 57.3kW/2400rpm |
| Engine oil volume | 10.2L |
| Fuel consumption | 252g/kwh |
| Running device | |
| Driving | 4 Hydraulic drive motor |
| Wheel | Antiskid tyre |
| Steering | Front Wheel/ 4-Wheel/ Crab-shaped turn |
| Outrigger | 4 legs, Self-leveling |
| Working Speed | 0-8km/h |
| Driving Speed | 22m²/min |
| Screed head | |
| Type | Self-leveling |
| Arm Length | 6000mm |
| Width | 3850mm |
| Paving type | With auger |
| Auger force | Hydraulic motor |
| Exciting force | 2000N |
| Vibration frequency | 60Hz |
| Swing Angle | ±45° |
| Screed head control | Ratio control |
| Height of screed head | 560mm |
| Control accuracy | ±1.5mm |
| Laser control system | |
| Control type | Microcomputer laser scan |
| Control effect | Flat, slope or double slope |
| Operation mode | |
| Chair position | Ride-on forward type |
| Forward and reverse | Handle control, stepless speed walking |
| Telescopic arm | Handle control, stepless speed |
| Steering | Hydraulic intelligent control |
| Cleaning system | |
| Power | Hydraulic motor |
| Theoretical flow | 20L/min |
| The Max pressure of inlet | 0.5Mpa |
| Rated pressure | 7MPa |
| Fuel tank volume | 150L |
| Hydraulic oil volume | 150L |
| Size and Weight | |
| Outline dimension | 5200×4350×3700mm |
| Weight | 8200kg |
