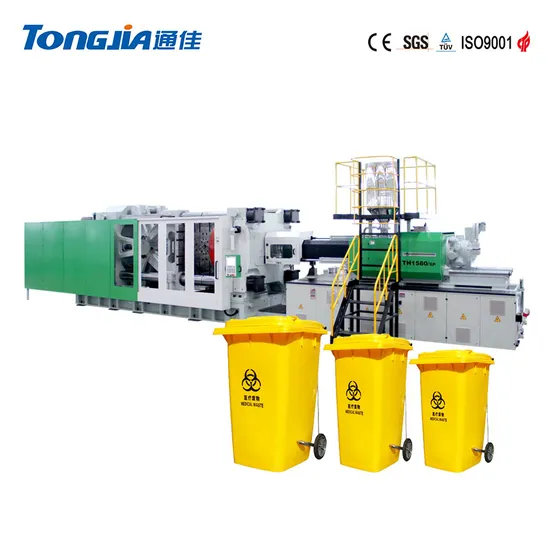

Plastic Infrastructure Dustbin Special Machine Injection Molding Machine

Product Description

Standard Unit
1. double - cylinder balance injection system
2. Multi - stage pressure & speed injection
3. Back - pressure adjustment device
4. Decompression
5. Low pressure mold protection
6. Multple hydraulic ejector knock - out
7. Lubrication system
8. Hydraulic pressure full proportional control
9. All computer control system
10.Molding data memory system
Highly Energy Saving
High response servo system, the machine output according to actual needs, not overflow, not wasted.It can save 30-70% of the energy.Compared to traditional machine, we use servo motor to save energy, and at the same time position control more accurate.
High Speed
Our machine adopts the high precise injection system, especially suitable for high speed injection molding of the low inertia and fast response speed, high speed injection molding machine is more efficient to produce thin-wall products and save more production time.
High security
High speed injection molding machine is equipped with mechanical, hydraulic, electrical total triple protection. Security modules
independent control, will ensure machine all parts running well, avoid any accident.

Item	Modle	Unit	TH1580/SP	TH1880/SP	TH2280/SP1	TH2880/SP
Injection Unit	Screw diameter	mm	120-150	130-160	150-185	190-220
	Injection Weight(PS)	G	6165-9632	8322-12606.4	12688-19299.7	31967.6-42859.5
	Screw speed	rpm	135.2	112.2	87.1	70.8
Clamping part	Clamping Force	KN	15800	18800	22800	28800
	Clamping stroke	mm	1520	1700	1900	2050
	Space between tie-bars	mm	1460×1360	1660×1560	1800×1620	2000×1750
	Max. Mold Height	mm	1400	1560	1600	1900
	Min. Mold Height	mm	650	700	700	1000
Others	Pump Motor Power	KW	134/174	174	218	262
	Heat power	KW	61	70	112	149
	Machine Weight(about)	T	70	120	138	221
	Dimensions	m	14.5×3.9×3.8	15.8×3.5×4.3	17.1×4.6×4	21.2×5.1×4.2

Our Services
1.12 Hours----We will give you reply within 12 hours.
2.Pre-sale service----We provide your professional service in fluent English.
3.Delivery----1~3 months.
4.Free Design----Professional engineers, free designs.
5.Certificates----The third-party verification service provider.
6.After sales service----OEM service provide; Design service provide; Buyer label provided.
Why choose us?
1.Our factory was founded in 1953 and we are market-leader in this line in China.
2.In the plastic machinery field, we have more than 30 years of relevant experience.
3.Our products extend all over the national and over 90 countries and areas of the world.
4. Our spare parts are international famous brand components.
5. Engineering team provide you with the most suitable model towards your products.
6.We will send our engineers to your factory installation the machine and train your worker after the machine
arrive your factory.
7.We will offer our best price and quality and hope have a good cooperation with you.
8.Our machines run stable, high output and our technology from German.

FAQ
Q1:What's your warranty policy?
A1:The Seller will guarantee the machine for 18 months since the date of shipment(that is leaving from Seller's factory) or the seller will guarantee the machine for 12 months since the date of starting installation and adjustment, whichever comes first.

Q2:What's your minimum order quantity?
A2:Min order quantity:1 set or by negotiate with each other.

Q3:What package do you use for the product?
A3: Be Coated with anti-corrosion oil, and covered with plastic film, then packed in wooden box.

Q4:Do you have technical instruction if I buy your product?
A4:Please read the user manual carefully for your reference, we have detail instruction on it. If your problems still can not be solved, welcome to contact us for help.

Q5:What is your overseas service?
A5:We will provide high quality overseas service ,our technical staff will be able to provide you with technical support, for you personally to overseas assembly and test equipment.

Q6:Will you conduct training for our staff here?
A6:Yes, we will provide technology support to factory technology, training for the relative person.

Q7:What are your terms of payment?
A7:We accept T/T, L/C, D/P,Western Union, Paypal, Money Gram.
Q8:I am very satisfied after I read your FAQ, how can I start to purchase my order?
A8:Please click the bottom of this page or contact our sales on Trade Mange online!
