Easy Installatio Integrated Solar Street Light with Motion Sensor
Basic Info.
Model NO.
F-AIO02
Light Source
LED Lamp,Energy-Saving Lamp
Lamp Body Material
Aluminum Alloy
Light Type
Solar
Color Temperature
Cool White,Pure Whicte,Warm White
Power
30W,40W,50W,60W,80W,100W,120W,150W
Technics
Painted Matte
Illumination Time
6h
Cell Type
LiFePO4 Battery
Charging Time (H)
8
Usage
Garden, Street, Highway,Street,Square,Road
IP Rating
IP65
Certification
CE, RoHS, Saso,Soncap,Pvoc
Voltage
12/24V
With Light Source
With Light Source
LED Power
30W to 120W for Optional
Pole Height
3m to 12m for Optional
Solar Panel
Mono,Higher Efficiency
Battery
LiFePO4 Battery
Charge Controller
IP68,Srne Brand
Luminous
≥150lm/W
Installation Distance
15m-20m or as Requests
Lifespan
5-8 Years
Guarantee
3 Years,5 Years
Smart System
Lorwan or Zigbee System
LED Chip
SMD3030 or 5050
Dimmable
Yes
LED Chip Brand
CREE/Bridgelux or Equivalent
Lighting Time
11-12hrs/Night
Transport Package
Carton+Pallet
Specification
30W 40W 50W 60W 80W 100W 120W all in one light
Trademark
FOREVELIT
Origin
China
HS Code
9405409000
Production Capacity
5000PCS/Month
Product Description

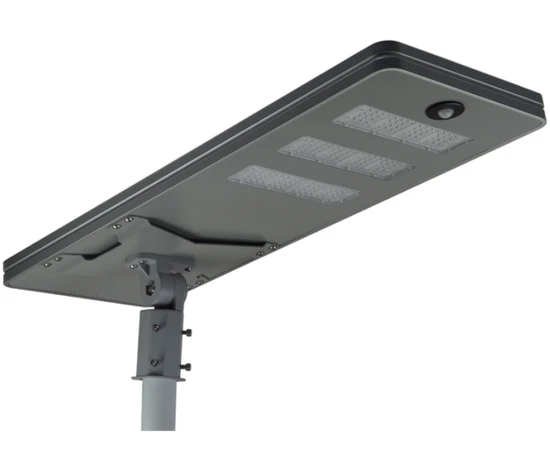

Integrated Solar LED Street Light The power range of our integrated solar LED street lights can vary depending on the model and specifications. The typical real power ranges from 10 watts to 100 watts due to size limitations. However, at Yangzhou Forever Lighting Co., Ltd., we have developed the Prime Series integrated solar street light with a flexible and big battery box design, allowing us to extend the maximum power to 120 watts.When selecting the appropriate power range for an all-in-one street light, we take into consideration your lighting requirements and the area coverage you need. Our integrated solar LED street lights are designed to provide efficient and reliable lighting solutions for various outdoor applications.
With our integrated solar LED street lights, you can enjoy the following features and benefits:
High-quality solar panels for maximum energy conversion
Long-lasting lithium-ion batteries for reliable performance
Flexible and big battery box design for increased power capacity
Wide power range options, from 10 watts to 120 watts
Efficient LED light source for bright and uniform illumination
Easy installation and maintenance-free operation
Environmentally friendly and sustainable lighting solution
At Yangzhou Forever Lighting Co., Ltd., we are committed to providing top-notch integrated solar LED street lights that meet your specific lighting needs. Contact us today to learn more about our products and how they can enhance your outdoor lighting projects.
Product Parameters
| Solar Panel | Solar panel(mono crystalline silicon) 18V | ||||||
| 60W | 60W | 70W | 80W | 110W | 120W | 160W | |
| LED power | 30W | 40W | 50W | 60W | 80W | 100W | 120W |
| Battery Capacity | LifePO4 battery | ||||||
| 12.8V 24AH | 12.8V 24AH | 12.8V 30AH | 12.8V 30AH | 25.6V 24AH | 25.6V 36AH | 25.6V48AH | |
| Chip Lumen | 130~150 lm/w | ||||||
| MPPT Controller Current | 5A | 10A | 10A | 10A | 10A | 15A | 15A |
| Led Chips Brand | CREE/BRIDGELUX OR CUSTOMIZED | ||||||
| Led Life Time | 80000hours | ||||||
| Viewing Angle | 70*120° | ||||||
| Work Time | 6-8hours per day,2-3 days back up | ||||||
| Working Temperature | -30ºC~+70ºC | ||||||
| Color Temperature | 3000-6500k | ||||||
| Mounting Height | 4-5m | 6-7m | 7-8m | 7-9m | 8-10m | 8-10m | 8-10m |
| Space between Light | 10-15m | 15-20m | 20-25m | 20-25m | 25-30m | 30-35m | 30-35m |
| Lamps Material of main body | aluminum alloy | ||||||
| Certificates | CE / ROHS / IP65 | ||||||
| Product Warranty | 3 years | ||||||
| G.Weight | 15.5kg | 15.5kg | 17.5kg | 20.5kg | 31.5kg | 32.5kg | 38.5kg |
| PIR Sensor | YES | ||||||
