Europe-Style 10t/15t/20t Mobile Dock Loading/Unloading Ramp with CE Certificate

Product Description

Container Manual Mobile Yard Ramp for Loading/Unloading
Specification:

Width	2000mm
Total length	11050mm
Capacity	10ton
Adjust range	1200~1700mm
Material	32# "H" beam for main body, 14# "H" beam for bottom
Manual pump	Import from Italy, brand is " Oiltec"
Ramp weight	3400kg
Warranty	1 year for hydraulic system, 5 years for steel structure
Color	Optional
Tyre	Solid tyre
CE No.	DGS12082902

Description:
1, We have many years experience in designing and customize the container ramp as per customer's
requirement.
2, Operate manner: Manual.
3, The 32# "H" beam steel structure for side-frame main body and 14# "H" beam for under-frame make it much
stronger than the common steel tube structure.
4, Fixed lip structure suitable for any vehicle(including the 3-wheel forklift) to pass through.
5, 100% galvanized steel grating of the slope part, aim at rust protection and skid resistance.
6, Capacity: 10ton, 15ton. 20ton
7, Two solid tyres provide excellent traction without worry of puncture.
8, The end bracket can be connected with the forklift(we've drilled two hole on the fork of forklift, then put rod of
the bracket into the hole of the fork) and can be moved by the forklift in any direction. And the end bracket
also is galvanized.
9, Operated with manual(If you need, we also can make electric for you).
10, The tightening chain's design between truck and mobile loading ramp is easy for operation and safe.
11, Hydraulic retractable support leg is optional.
12, 1 year warranty for hydraulic system, 5 years warranty for steel structure.
13, Hydraulic retractable support leg is optional.
14, The demension for every part can be customized to suit to acture demand.
15, We also can make it with 3-side loading and unloading style.

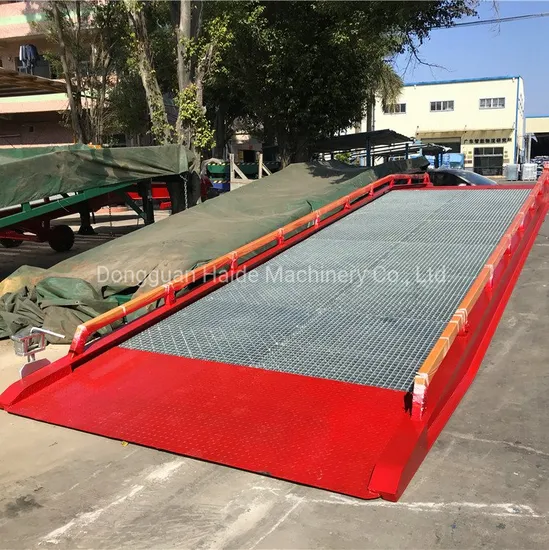

Product pictures:
