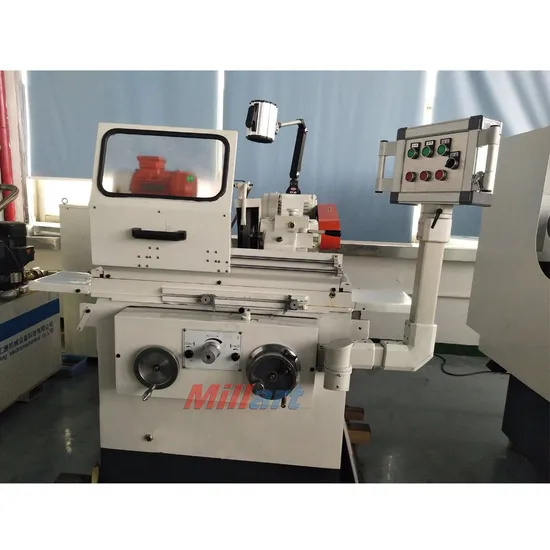

Cylindrical Grinding Machine with Internal Grinding M1408, Internal and External Grinding Machine

Cylindrical Grinding Machine with Internal Grinding M1408, Internal and External Grinding Machine

US$5,600.00
1-2 Pieces
US$5,000.00
3+ Pieces

Basic Info.

Model NO.
M1408
Type
Tool Grinding Machine
Certification
GS, CE
Condition
New
Grinding Dia
Dia2-80mm/10-60mm
Center Grinding Length
300/65mm
Center Hight
115mm
Max Workpiece Weight
10kg
Weight
1000kg
Machine Size
1360*1240*1000mm
Transport Package
Plywood Case
Specification
package size: 1860*1370*1680mm
Trademark
Millart
Origin
Shandong, China
Production Capacity
200units/Month

Product Description

Product description:
Technical parameter :
Feature :
1, mainly used for grinding small shaft, circle, needle valve, plunger set of cylinder and cone surface
2, tooling way available top, three jaw chuck, and special fixture of spring clip;
3, apply to instrumentation, automotive electrical and mechanical, bearings, textile, Marine, sewing
machines, machinery and other industries processing small parts,
4, vertical moving workbench hydraulic and manual, grinding wheel rack and head are rotating,
hydraulic system USES the good performance of the gear,
5, suitable for tools, machine shop and workshop for medium and small batch production,
6, the machine according to the top is divided into 300 mm.
Model M1408
grinding dia dia2-80mm/10-60mm
center grinding length 300/65mm
center height 115mm
max workpiece weight 10kg
worktable speed 0.1-4m/min
wheel peripheral velocity 35m/sec
max travel of table 320mm
swivel range of table -3-+7degree
Inner spindle speed 15000(r/min)
external wheel size Max 250*25*75mm Min180*25*75/20*8*20mm
Wheel spindle speed 1600r/min
tail center NO.3
machine size 1360*1240*1000
weight 1000kg
motor power 1.5.kw
Motor total power 3.16kw
Roundness 0.002/0.005um(O.D/I.D )
Surface roughness RA0.25/0.63(OD;ID)
Uniformnity of dia.in longitudinal section 5/8UM(OD;ID)

Company information:
FAQ
Q: Are you a trading company or a physical factory?
A: We are a specialized physical factory for more than 10 years. Our machines also gained CE certificate, ISO9001 and EAC certificate.
Q: What's your main products of your company?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.

Q: Can you provide customized machine?
A: Yes, we provide customized service for customers to meet different requirements.


Q: Can we visit your factory?
A: Sure, we warmly welcome you to visit our factory at any time. The more you know about us, the more you will trust us! So you can rest assured on our quality machines and our best service.
Q: What's the Payment Terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
Q: What is your trade terms?
A: FOB, CIF ,DDP and CFR all acceptable.
