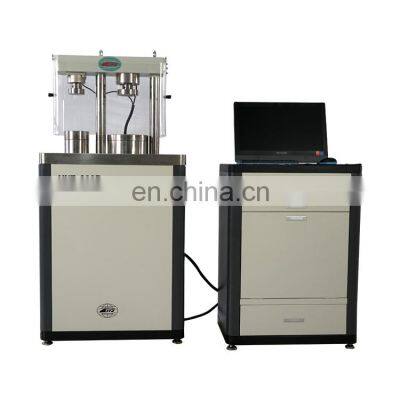

HYE-300b Microcomputer Servo Compression Testing Machine

Product Description

Product Description
HYE-300B Concrete Anti folding and Anti compression MachineUsage OverviewThe series of testing machines are powered by hydraulic pressure. Electro-hydraulic servo control technology is used to test themechanical properties of cement, mortar, brick, concrete and other building materials. It shows the loading force value, loading speed and loading curve. The test data is automatically processed, stored, and printed.1.Using 300KN and 10KN high precision load cells;2.Use special anti-pressure and anti-folding fixtures for cement;3.Adopt a plexiglass protective cover with novel appearance.APPLICATION STANDARD:GBT、ISO、ASTM、DIN、JIS etc.ModelHYE-300DHYE-300BCompressiveflexural maximum test force(KN)300/10300/10Test accuracyLevel 0.5/1Level 0.5/1Compressive piston stroke80mm80mmAnti-floding piston stroke60mm60mmCompressive compression space180mm180mmFlexural compression space180mm180mmFied upper platen sizeΦ108/Φ60mmΦ108/Φ60mmBall-type upper platen sizeΦ168mmΦ168mmLower platen sizeΦ207mmΦ207mmMotor power1.5KW0.75KWMainframe dimensions560*400*1340mm560*400*1340mmMachine weight520kg520kgControl cabinet dimensions540*500*820mm540*500*820mmOur AdvantagesInstallation and training · If buyers visit our factory and check the machine, we will teach you how to installand use the machine, and also train your workers/technician face to face. · Without visiting, we will send you user manual and video to teach you to install and operate.After Service · One year guarantee for whole machine. · 24 hours technical support by email or callingAny questions, please contact me without hestitation, welcome your inquiry!Price can be negotiatedour customerCompany Profile ` Cangzhou Lovely Group Co.,Ltd. is a professional manufacturer specializing in Testing Equipment,Universal Testing Machine ,Asphalt Tester,Test Moldsand Soil Road Lab Tester,supply verious type of products ..... We assure high quality to you. · All our products are made in China .Excellent quality with competitive pricePacking & Delivery · Tianjin port or Qingdao Port deliver by sea and Also can ship by air via express companyFAQQ1: Are you a factory or trading company? A: We are a factory specializing in manufacturing all kinds of scaffolding material.Besides, we could also purchase products as request. Q2: Where is the loading port?A: Tianjin port or Qingdao Port.Q3:How to choose the Transportation Term? A:Usually,we may according to your needs,we may choose the most rasonable freight,thento select for you. Q4: What certificates do you have? A: We have ISO 9001, CE, SGS. Q5: Do you have an OEM service? A: Yes. We can provide OEM services according to your requirements.Q6: What are the payment terms? A: T/T payment is preferred and other could be accepted, such as L/C, D/P, Western Union, PayPal etc. It is negotiable.Related Products
