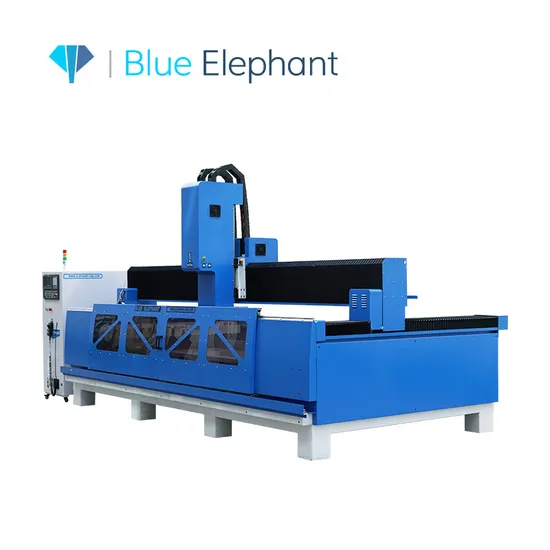

Linear Automatic Tool Changer Stone Carving CNC Router Center

Product Description

Description
Description
Quartz stone CNC machining center can process stone kitchen sinks, stone countertops, basins, etc. It integrates edging, polishing, drilling, milling, and special-shaped cutting. One-key intelligent completion of conventional blanking, 45° bevel cutting, multi-angle arbitrary cutting, etc Features
1. High degree of automation. The entire process of grinding, polishing, drilling, milling and other actions in accordance with preset instructions. So it achieve seamless intelligent processing.
2. Widely used. It can be widely used in the processing of kitchen countertops, bathroom countertops, bar island countertops, coffee table tops, stone tabletops, etc.
3. Intelligent environmental protection. Automatic environmental protection processing in the whole process; build a dust-free workshop and refuse pneumoconiosis.
4. Simple and easy operation. Ordinary workers can get started in one working day, which is more worry-free.

Technical parameters

Description	ELECNC3015
X,Y axis travel	3000*1500mm, option: 1300*2500mm; 2100*3000mm; 2100*4000mm, etc
Z axis travel	500mm, option: 400mm, etc
Spindle type	Kenturn 7.5kw water cooling ATC spindle
Inverter type	7.5kw inverter
Tool magazine	12pcs tool magazines
Control system	Syntec 60WE
Driving system	1KW YASKAWA servo driver and motor
Reducer	Japan Shimpo reducer
Machine structure	Heavy duty body with quenching treatment
Work table	Stone special working table
Linear guide	TaiwanLinear guide
Transmission	X,Y axis: Taiwan Helical Rack and Pinion Z axis:Taiwan TBI high precision ball screw
Lubrication system	automatic lubrication system
Tool calibration	Autotool sensor calibration
Cables	Germany Igus cables with CE, cUL certificate
Compatible software	Artcam / Aspire, etc
Command language	G Code & M Code
Traveling speed	60m/min
Working speed	0-30m/min
Re-positioning accuracy	±0.03mm
System resolution	±0.0025mm
Working accuracy	±0.03mm
Working air pressure	More than 0.6mpa
Working voltage	380V 3PH 50HZ/ 60HZ

Detailed Photos
PS:All the working area and specifications can be customized according to your requests.

Sample & Application
Sample & Application
Stone serious engraving machine is mainly used in the engraving of the hard materials.
Such as marble, grantie, glass, stone,etc.
Exhibition
Certifications
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
*More than 95% of the timely response rate, timely response to customer questions
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Use online contact methods such as skype whatsapp facebook to provide online services to customers. Company Profile
Jinan Blue Elephant CNC Machinery, the professional cnc router and laser cutting machine manufacturer in China, include ATC CNC router, Wood CNC Router, Stone CNC Router, Metal CNC Router, EPS CNC Router, 4 Axis CNC Router, 5 Axis CNC Router, Plasma Cutting Machine, Laser Cutting and Engraving Machine and so on, which have passed the CE, SGS, ISO9001 etc. Our cnc routers are widely used for advertising, woodworking, mould, stone, metal industry.
Packaging & Shipping
Packaging Details
1.The innermost layer is EPE pearl cotton film package.
2.The middle layer is wrapping up with environmental protection material .
3.And the outermost layer is winding up with PE stretch film.
4.They're very environmentally friendly.
5.If you need a wooden box, we will make a wooden box.
Delivery Detail: Shipped in 25-30 working days after payment
FAQ:
1. I need a CNC router, can you give me some suggestions?
A: Sure, We will give suggestions of the most suitable machine. Before that, we need to know some information, such as effective processing area, materials, etc, to determine the main parameters
2. Which kind of materials can be processed on this machine?
A: Wood, mdf, stone, acrylic, glass, plastic, foam, aluminum, Copper, and almost all kinds of non-steel materials.
3. Are you a factory or trading company?
A: We are the manufacturer and we have 10 years factory experience. As only the machine made by ourselves, the quality can be trusted, and the most important thing is that we can do better after-sales service. We know how to fix the problem of every part easliy, so welcome to visit to our factorv.
4. How should I pay for my order?
A: You need to pay 30% as prepayment at first, then we will start to makeproduction. When the machine is completed, we will send pictures orvideos to you, and then you need to payd the balance. We will ship themachine to you after we receive your full payment.
5. How long is the delivery time?
For standard machines, it will be 7-10 days: For non- Standard machine and customized machines according to clients specific requirements, it will be 15 to 30 days.
