9HP/13.5HP/15HP Gasoline Engine Mini Excavator Loader Tractor Mounted Pto ATV Small Towable Digger Backhoe with Best Price

Product Description

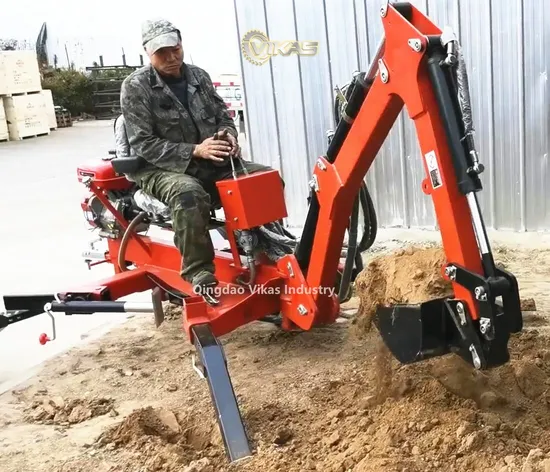

2024 New EC EPA Certificated 9HP 15HP ATV Towable Gasoline Farm Work Garden Use Backhoe Excavator
ATV Towable Backhoe Excavator Self Power Backhoe Gasoline Engine Backhoe Price
Products Description
This backhoe excavator is a one kind of speical excavators, which is assigned to the backhoe as it carries out operations
mainly in the state.Similar to a conventional hydraulic excavator, the walking backhoe excavator has a rotatable super structure on which the
boom with auxillary is located. Differently formed is the construction of the undercarriage. Thus, the mini walking excavator
does not have a conventional wheel drive,but equipped with four stride legs. On the legs are both wheels and outriggers.
With the help of these independently controllable walking legs it is possible for the operator to carry out work even in compli-
cated terrain or in the riverbed. This kind of excavator is widely used in earthworks, forestry or landscape conservation.
Main Features 1. Towable backhoe with 9-15hp gasoline engine
2. Start method: electric start / recoil start.
3. two balls hitch
4.Hydraulic feeding system,with free flow valve,easy to control feeding rate,featured with compact structure.
5.Horizontal design,easy to operate.Flexible, convenient operation and quick mounting and dismounting.
6.Available bucket: 220mm, 300mm, 400mm, 500mm, 600mm,V type bucket,thumb,ditching finger also be availible.
7. Suit for America, Australia & Europe market.
8. Gasoline engine with low noise.
Configuration

Engine	9HP /13.5HP/15HP
Optional Engine Brands	JD,Loncin,B&S,Kohler
Engine Type	Horizontal Single Cylinder 4-stroke, Recoil Start Or Electric Start
Displacement	270cc/420cc
Engine Standard	EPA/CE
Body Color	red, green, or customized
Swing Angle For Boom	140 degree	140 degree
Max Digging Depth	2400(mm)	2400(mm)
Max Digging Radius	2800(mm)	2800(mm)
Max Digging Height	2500(mm)	2500(mm)
Max. Unloading Height	1400(mm)	1400(mm)
Stabilizer Wdith	1800(mm)	1800(mm)
Bucket Turning Angle	160 degree	160 degree
Bucket Width(optional)	220/300/400/500/600(mm)
Hydraulic Pressure	16Mpa	16Mpa
Bucket Capacity	0.036m³	0.036m³
Coupler Size	2'' or 5cm Ball for Easy Towing
Dimension	3000*1500*2300mm	3000*1500*2300mm
Gross weight	510kg	550kg
Packing size	1800*1100*900mm	1800*1100*900mm
Quantity in 20'GP / 40'HQ	12PCS/36PCS

IMAGES DETAILS
Company Profile
Vikas Industry has an advanced production management system with 4 sets of big power laser cutting machine and
more than 10 sets of different CNC centers, including lathing,drilling, milling, grinding, sawing and other maching tools etc.
Besides these maching centers, we also have a complete set of powder spraying coating line for different colors. All these
can guarantee we can provide clients with a very favourable price and the fast delivery within one month.
As one of leading manufacturers of agriculture and gardening machinery in China, Vikas Industry has more than 20
years of experiences in manufacturing and providing one-stop solutions abd services to meet clients different products
requirements. Vikas also can provide OEM and ODM customized services as well. Welcome clients to contact us freely
and share with us their specific requirements for product color, model, design, preferable engine brands, packages, labels
and other details. We will provide you a satified feedback and considerate services.

PACKING METHOD AND DELIVERY:
Packing method: iron steel frame with soft tubes fixed, then stretch films wrapping, or wood boxes or other seaworthy packing.
We can assist you to adjust the packing box sizes slightly and machines quantity to make the best loading plan to
save the transportation cost for you
Container loading: 1x20f can load 12 sets, 1x40f can load 24 sets
OUR WORKSHOP and MACHINING CENTER:
Certificates Of Our Factory
Other series products recommendation
FAQ

1.Are you factory?
We are a professional manufacturer with 20 years of production experience.
2:What's the MOQ?
A: MOQ is 1set
3:How long is the lead time for sample and mass production? A: Samples will take about 10days,mass production will need 20days.
4: What OEM Customization can you offer? A: Colors
B : Different engines
C: Labels
D: Logo
E: Package
F: Manual books
5: What's your warranty?
A: Normally warranty period is one year (non-artificial damage),we will send you new spare parts to replace by air For free.
6: What other additional services we will offer?
A: Professional advertising videos. We have our own photographers and video
editors to offer you professional customized advertising videos.
7: Do you have ISO quality, environmental and safety management system certificate?
A: Yes, we can provide the certificates.
