2/4/6/12/24/48/96 Cores Outdoor Optical Cable Aerial All-Dielectric Non-Metal ADSS Optical Fiber Cable

Product Description

2/4/6/12/24/48/96 Cores Outdoor Optical Cable Aerial All-Dielectric Non-Metal ADSS Optical Fiber Cable
Description

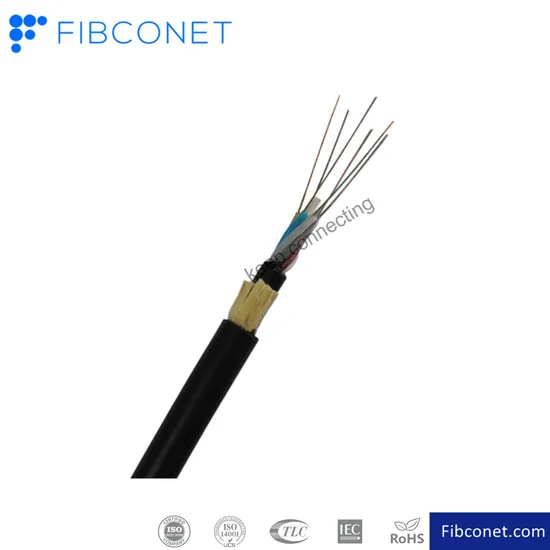

All Dielectric Self-supporting Aerial Cable is loose tube stranded. 200um or 250um fiber , is positioned into a loose tube which made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.APPLICATIONS
· The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines 10kv and 35kv, PE outer sheath is applied
· FOR power lines 110kV and 220KV, AT outer sheath is applied
· The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans FEATURE
· Precise optical fiber length control, ensure that the cable in the design load optical fiber does not force.
· Precise control of aramid fiber pay-off tension and twisted pitch, improve the fiber optic cable tensile resistance.
· Reasonable production process makes the outer sheath, aramid fiber, combined closely with the cable conductor, cable structure more compact.
· Use electric mark excellent material, fiber in high induction electric potential under the environment of more security.

Item	Unite	Parameter
Fiber No.		12
Cable Diameter	mm	12.0±0.2
Cable Weight	Kg/ Km	120±10
Outer Sheath Thickness	mm	1.9±0.1
Inner Sheath Diameter	mm	7.9±0.1
Loose Tube Diameter	mm	2.0±0.1
Fiber No./Tube		6
Loose Tube No.		2
Filler No.		4
FRP Diameter	mm	2.0±0.1

Starting with the Copper age in 1992, FIBCONET has gone through nearly 18 years in the fiber optic communication area.Now FIBCONET has 3 manufacturing centers, Ningbo, Guizhou, and Northeast China, covering more than 10,000 sqm,owning 800 well-trained staff and engineers, reaching the production capacity of PLC Splitter in 300,000 pcs and fiber opticalconnectors in 10 million pcs per month. As the national high-tech enterprise, FIBCONET also strives for more efforts in innovation.50 patents, 15 invention patents have been attained.FIBCONET focus on the fiber optical components, such as PLC splitter,patch cord, , adapter, connectors, etc. Especially for the PLC splitter, can work in an extremely cold environment, even in the -50centigrade degree, like in Russia, FIBCONET's PLC can still help transmit the optical signal very well, And if you hope to get the0.1 dB for insert loss on your connectors, which is hard for the regular production, FIBCONET also can reach you.FIBCONET supplies goods all over the world through trading companies and agents, like Corning in the USA, Vodafone in Europe,Furukawa in Japan., etc. ISO9001, Rohs, and TLC certificates have already been approved by the market and our customers.With the new corporate vision: To be the top supplier for the fiber optical components, "Keep connecting" is our Motto, not only meansthat we produce the connectors and connect the fiber optic equipment, but also connect with the new technology, connect with everyFIBCONET person connects with our customers worldwide.
