2021 High Speed Toilet Tissue Paper Production Line

Product Description

2021 High Speed Toilet Tissue Paper Production Line

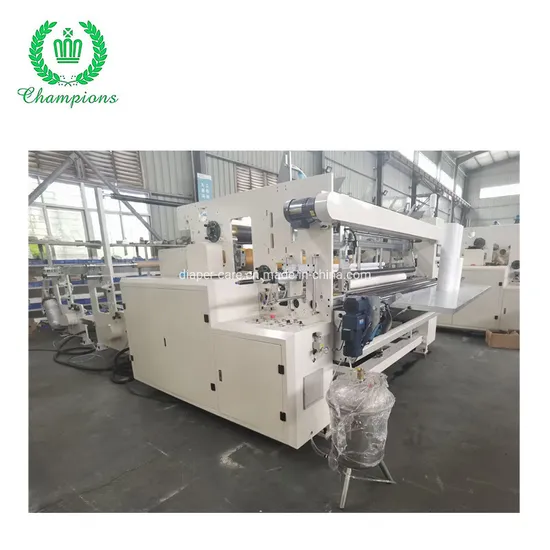

This production line is consist of 3 sets machines, toilet paper rewinding machine, automatic double channel log saw and semi-automatic multiple rolls bundle packing machine. Product Description Toilet Paper Rewinding Machine
1.This machine is for making toilet paper, maxi rolls, the whole structure is wall-type, which make machine running stable at high speed, and noiseless.
2.Perforation distance is adjustable to meet different distance needs.
3.Automatic core feeding system, automatic pushing the log after rewinding, then rewinding the new log again.
4. Edge-trimming, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.
5.Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen. Double Channel Log Saw
1.Automatic blade grinding system, quickly setting parameter on PLC. 2.Sharpen wheel can grinding according to the wear degree. 3.Two Logs are feeding automatically, cutting then pushing. 4.Shortcuts can be kicked off from the quality products. 5.Equiped with two sets of clamping channels, easy to change.
Semi-Automatic Multiple Rolls Bundle Packing Machine
1. Automatic counting roll number and feeding the rolls, then push into bags.
2. Packing size adjustable, can pack from 4-12 rolls for single layer, or more rolls for double layers.
3. Automatic connect with double channel log saw, easy operation, low cost. Product Parameters 1.Toilet Paper Rewinding Machine

Jumbo Roll Max Width	1350-2850 mm
Unwind Stands	1-3 Stands
Jumbo Roll Material	1~3layers, 14-30gsm,Tissue Paper
Jumbo Roll Diameter	Φ1100mm
Jumbo Roll Inner Diameter	3inches(76.2mm) (Other size can be specified)
Finish Product Diameter	Φ90-φ280mm
Finish Core Inner Diameter	φ38-φ76.2mm
Perforation Distance	100-150mm, 200-300 mm
Production Speed	0-230m/min
Parameter Set	HMI, Touch Screen
Pneumatic System	3HP Air Compressor, Minimum Pressure: 5kg/cm 2Pa(Provide by user)
Total Power	(depends on model and configuration)

2. Double Channel Log Saw

Jumbo Roll Max Width	1350-2850 mm
Jumbo Roll Diameter	Φ105~φ115mm (Other size can be specified)
Design Speed	150cut/min
Stable Speed	100 cut/min
Grinding System	Pneumatic Sharpen, grinding time can be set
Driving System	Delta Servo Motor
Power	11KW
Dimension	6500*2500*2000mm(Other size depends on model and configuration)
Blade Diameter	φ610*4.7(mm)
Voltage	380V 50HZ
Weight	About 4.5T

3. Semi-automatic Multiple Rolls Packing Machine

Voltage	220V 50HZ
Main Power	0.74KW
Sealing Transformer Power	0.45KW
Total Power	1.19KW
Air Pressure	0.4---0.5MPA

Detailed Photos
Packaging & Shipping
Company Profile
Champions Corporation is professionally manufacturing and supplying all raw materials for disposable hygiene products and also including comprehensive consulting for the hygiene machinery project.
Since 2002, we started our first production line for disposable hygiene products, through decades of development; our business includes manufacturing baby diaper, lady napkin, adult diaper and supplying all raw materials for hygiene products. We build up our reputation in domestic market and cooperate with some long-lasting customers overseas.
And for tissue paper machines, our factory have more than 20 years development history, we are professional on all kinds of tissue paper processing machines including Toilet Paper and Kitchen Towel Rewinding Machine, Facial Tissue Making Machine, Hand Towel Folding Machine, Napkin Machine, Pocket Tissue Machine and relevant cutting machine and packing machine. We export more than 200 sets machine to over 20 countries every year. We upgrade our technology and expand our scale step by step.
Quality first and client first are always the objects we peruse.
Hope to start a bright future with you!
Our Advantages Professional Engineer
Our factory is more than 20 years, we witness the development of tissue paper processing machines.
As a result, we have a lot of experienced engineers, to design machine according to client's requirement, and make sure each machine working perfectly.
We persue good machine quality, we keep research new technology and upgrade the machine better and better.
Professional Sales
As we have our own factory, our sales knows the machine very clearly, we can explain every details no matter you are familiar or not to these machines.
We give professional solutions to meet different client's requirements. You will always find one happy solution to start your business here.
And we welcome clients visit our factory, and we will give you transportation tips before you come, and arrange car to pick you from train station or airport.
Good After-sales Service
Customers' satisfaction is always our best feedback, we put client in the first place. We have 24 online service, 7 days. And we always give fast response to solve your confusion.
During all machine lifetime, we guarantee good after-sales service. Machine is high value product which can use for years, no matter you meet machine small problems or you need to buy machine spare parts, you can come to us. You buy our machine, you have our back on.

FAQ 1. Are you factory manufacturer?
A: Yes, we are factory manufacturer, our factory history has been more than 20 years, and welcome to visit my factory when you come to China.
2. How long is your Warranty?
A: Our machine warranty is ONE year guarantee but machine after-sales service is all machine lifetime.
Within ONE year warranty, for the main machine spare parts like PLC, Motor have damage not by manmade, we will courier the spare parts immediately for free.(not including easy-wear spare parts like blade)
After ONE year warranty, we will still provide after-sales service, but if need to courier spare parts, client needs to cover the cost.
3. What about the machine installation?
A: All our machine will testing before shipping, and the testing cost is for free, then we take apart the machine to several packages for shipping. We have engineer overseas service, if you don't have any machine experience, we can send engineer to your place to install the machine and train your workers, for this service, client need to cover its cost.
4. What's the payment terms?
A: 30% deposit by T/T, and pay the balance after machine testing before shipment by T/T.
5. What's the delivery time?
A: Almost all the machine start production after ordered, so machine delivery time is about 60 days, for urgent needs please check with sales if have ready stock or make it faster.
