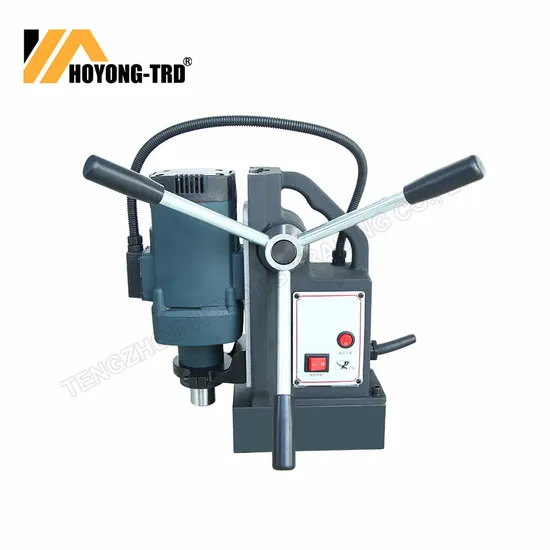

Core Drilling Magnetic Superpower Positive and Negative Turntable Drill Machine Jc23b-2

Product Description

Magnetic Drill:
Magnetic drill also called Magnetic broach drill or Magnetic drill press. Its performance Principle is the Magnetic base adhesive onto the surface of
working metal.Then press the working handle downwards and drill through the heaviest beams and steel plating. The magnetic base adhesive
power controlled by electric coil that Electromagnetic.Using annular cutters, these drills can punch up to 1-1/2" diameter holes in steel up to 2" thick.
They are built with durability and heavy use in mind and feature powerful motors and strong magnetic bases.
Magnetic Drill Usage:
Magnetic drills is a new type of drilling tools, which construction and design very precision and uniform, very potable and universal drilling machine
for its light duty. Magnetic base made it very convenient on working Horizontally(water level), vertically, upwards or in high point. Magnetic drills is
an ideal machine in steel construction, industrial construction,engineering,equipment reparation, railways, bridges, ship building, crane, metal
working, boilers, machinery manufacturing, environmental protection, oil and gas pip line industries.

MODEL	JC23B-2 (Rotatable base)	JC23B-3	JC28A-2 (Rotatable base)	JC28A-3
Motor power (w)	1100	1100	1200	1200
Voltage	220V,50/60Hz,Single phase	220V,50/60Hz,Single phase	220V,50/60Hz,Single phase	220V,50/60Hz,Single phase
Speed (r/min)	550	550	550	550
Core drill(mm)	Ø32	Ø32	Ø32	Ø32
Twist drill (mm)	Ø23	Ø23	Ø28	Ø28
max travel(mm)	185	185	185	185
Min. plate thickness(mm)	8	8	8	8
Spindle taper	Morse2#	Morse2#	Morse2#	Morse3#
Magnetic adhesion(N)	>14000	>14000	>15000	>15000
Rotation angle	Left and right 45°	/	Left and right 45°	/
Horizontal movement(mm)	20	/	20	/
Packing size(mm)	421*430*181	421*386*181	421*430*181	421*386*181
N.W / G.W(kg)	23.8/25	21.8/23	23.8/25	21.8/23
