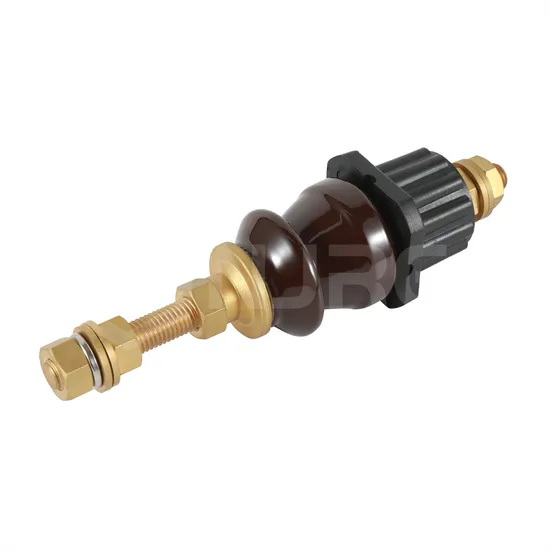

DIN High Voltage Primary Bushing Electrical Porcelain Secondary Transformer Accessories Bushing

Product Description

EN and DIN Transformer Bushing:
As a standard product we can offer both historical DIN standard bushings and the latest EN range of bushings, these product cover the requirements of distribution and power transformer manufacturers. We can offer ratings from 1kV through to 52kV and up to 12500A with a wide variety of creepage distances to meet all environemental conditions.
All outdoor bushings are manufactured and tested in accordance with IEC60137, the detail of the bushing is governed by either historical DIN specification (no longer live standards but still utilsed widely by the transformer and distribution industry) or the latest range of EN specifications (EN50386 & EN50180).
Air end termination is typically either the screwed conductor stem or flag terminal (various hole arrangements are available) and the oil end termination can be as the air end termination or a machined hole arrnagement to suit the customers requirements.
For the metal parts surface finishing, we can make as per customer requirements such as tin plating, galvanising, cooper plating.
Technical Specifications:

Maximum Rated Voltage	From 12kV up to 52kV
Maximum Rated Current	From 250A up to 4500A
Nominal Creepage Distance	From 290mm to 1655mm
Standard Reference	DIN42533 and EN50180
Rod Material	Copper / Brass
Special Finishing	Tinplating / Silverplating
Multiple Connection Styles
