Hightop Small Excavator Powerful Mini Excavator with Diesel Engine EPA Gasoline Engine
Basic Info.
Model NO.
HT10
Type
Crawler Excavator
Usage
Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
Bucket
Grab Shovel
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Size
Medium-Sized
Certification
CE, ISO9001: 2000
Condition
New
Product Name
Mini Excavator Small Digger Excavator 1ton
Digging Bucket Capacity
0.025cbm/120kg
Bucket Width
380mm
Rated Power
8.2kw/3600r/Min or 9.9kw/3600r/Min
Displacement
6.8ml/R
Travel Speed
1.5km/H
Transport Package
Plywooden Case
Specification
2.85*1.05*2.33m
Trademark
Hightop
Origin
China
HS Code
8429521200
Production Capacity
50 Set/Month
Product Description

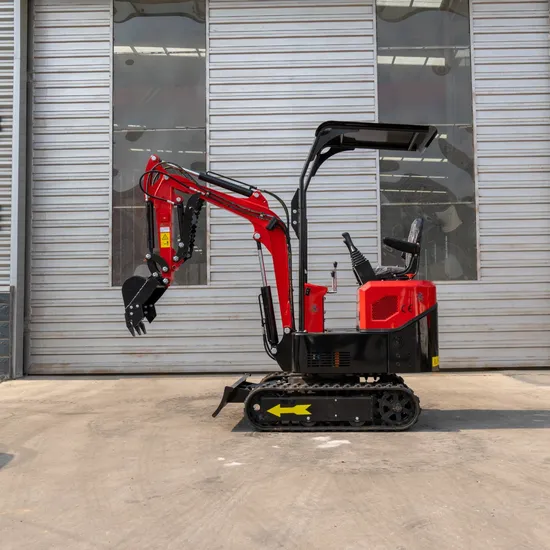

HT10 Mini Excavator factory Crawler Excavator used for Garden Micro Bagger Mini Excavator for Sale
Specification
| Model | HT10 |
| Weight | 900kg |
| Digging bucket capacity | 0.025cbm/120kg |
| Bucket width | 380mm |
| Engine | CHANGCHAI(192FAM) |
| Optional EPA Engine | BRIGGS & STRATON(G420FD) |
| Bore stroke | Single cylinder, fan cool |
| Rated power | 8.2kw/3600r/min or 9.9kw/3600r/min |
| Main pump | G5-6 |
| Displacement | 6.8ml/r |
| Swing motor | SHANYANG(BMRS-250) |
| Traving motor | SHANYANG(BMT245) |
| Travel speed | 1.5km/h |
| Main Dimension | |
| Overall dimension(L*W*H) | 2775*930*2219mm |
| Wheelbase | 910mm |
| Total length of track | 1230mm |
| Platform ground clearance | 380mm |
| Platform back turning radius | 784 mm |
| Chassis width | 896mm |
| Track width | 180mm |
| Track height | 320 mm |
| OPERATING RANGE | |
| Max. Digging depth | 1650mm |
| Max. Vertical digging depth | 1375mm |
| Max. Digging height | 2610mm |
| Max. Dumping height | 1850mm |
| Max. Digging radius on ground | 2850mm |
| Min. Rotation radius | 1330mm |
| Max. Upgrade height of bulldozer blade | 345mm |
| Max. Digging depth of bulldozer blade | 255mm |
mini excavator chinese mini excavator for sale cheap mini excavator
1000kg hydraulic mini excavator with competitive prices --CE , ISO EPA , Euro 5
1) Simple structure and compact design ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) Give full consideration to reduce the working oil consumption, to obtain maximum efficiency in all kinds of work site operation.
4) Auger, grab, hydraulic hammer, narrow bucket can be installed on this excavator, efficient and wide-range use.
5) Small invest, quick return.
can install with EPA engine , Euro 5 engine.
