Hot Sale Large-Scale Rotary Tablet Press for High-Performance Hydraulic Single-Punch Granulating Tablets

Product Description

Product Description
Following is the specification and ZP80-9A machine for your reference.

Model	ZP80-9A
Dies	9 sets
Max pressure	800 Kn
Dia of Tablet	50 --80 mm
Max Depth of Fill	60 mm
Thickness of Tablet	25-31mm
Turret Speed	1--10 r/min
Max Production Capacity	1-5400 pcs/h(adjustable)
Motor	30 kw 980 r/min 380 v / 50 hz
Overall Size	1430*1280*2120 mm
Net Weight	6000kg

Product Parameters

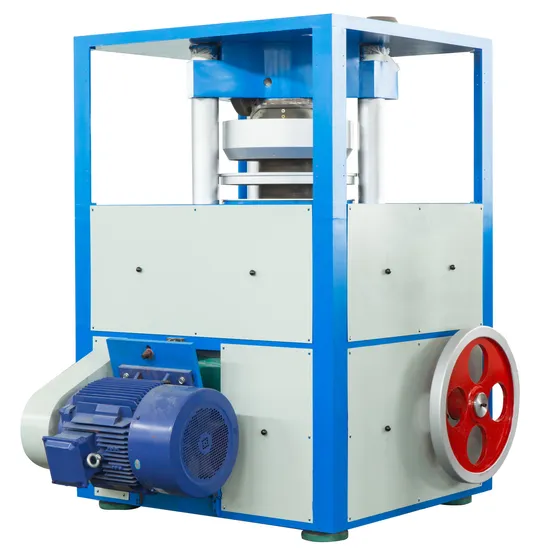

ZP80-9A Large rotary tablet press
salt powder compaction machine
large rotary tablet press our model ZP80-9, max pressure is 80T, it has pre-pressure with pre-pressure wheel. Currently 80T still is the highest pressure that rotary tablet press machine can reach in china mainland.

Tablet hardness our ZP80-9 have reached is 120-300kgf/c, which is the test result from Nanning chemical group and Hebei Jiheng chemical group. They gave us the qualified report after debugging. These are best prove for our machine ZP80-9 pressure.


This kind machine is not cheap. Sincerely suggest and warmly invite you to have field trips to china before ordering. We came across following feedbacks since last year that some people tried to copy our model ZP80-9 machine, they equiped wrong speed reducers for machines, but used 100T rotary to mislead buyers, they exaggerate and false propaganda, actually their machines could not to work continuously even 2 hours . Be careful if you come across.

Introduction:
ZP80-9A have been used to produce Tri-chlor/TCCA tablets with an inner hole, 100g 200g. Such annular TCCA tablets with hole are in production now by ZP80-9A for Japan Factory.
ZP80-9A is used to press any granular material into large tablets (eg: Dia=76mm) of round or non-round shape. It was specially developed for large TCCA production in 100g 200g by our company 6 years ago.
ZP80-9A large rotary tablet press machine production capacity reaches 4000 pcs/h in 100g 200g chlorine tablet, which is ten times than traditional hydraulic tablet press machines. It is called "Power TCCA Machine"by TCCA producers with its good speed and excellent production capacity. We also think out many solutions to protect machine from corrosion. ZP80-9A have been used to produce 3-inch Chlorine Pool Tablets/ 3 Inch Tri-Chlor Chlorine Tablets/swimming pool chlorine tablets.
Characters:
* 9 pcs/ 100g 200g TCCA/chlorine/tri-chlor/swimming pool chlorine tablets
output in each circle, 4000pcs/h.
* with pre-pressure wheel, has pre-pressure which guarantee the quality of tablets.
* ZP80-9A especially can produce 100g 200g TCCA/swimming pool chlorine tablets with an inner hole.
* Moulds are made of Titanium Alloy material.
* Other parts connecting with material are made of Titanium material.
* Transparent window is made of plexiglass, prevent powder from cross-contamination
* All gearing parts are fixed in the tablet machine inner, avoild it of corrosion.
* With a frequency protection device, if pressure is too large, it can be automatically shut down to protect the body from damage.
* It is our patent product. In china, traders also have resold it to their foreign clients.
Who has used it?
(1)In china, Hebei Jiheng Chemical Group, the largest TCCA production company in asia, has bought more than 5 sets from us. Its yearly production is more than 20000tons. With stable supply ability and good finished chlorine tablets, it has been the designated supplier for USA Lonza.
(2)Exporting, for example: It has arrived Brazil & Japan
Attention:
Large rotary tablet press our model ZP80-9, max pressure is 80T, it has pre-pressure with pre-pressure wheel. Currently 80T still is the highest pressure that rotary tablet press machine can reach in china mainland.
Tablet hardness our ZP80-9 have reached is 120-300kgf/c, which is the test result from Nanning chemical group and Hebei Jiheng chemical group. They gave us the qualified report after debugging. These are best prove for our machine ZP80-9 pressure.


This kind machine is not cheap. Sincerely suggest and warmly invite you to have field trips to china before ordering. We came across following feedbacks since last year that some people tried to copy our model ZP80-9 machine, they equiped wrong speed reducers for machines, but used 100T rotary to mislead buyers, they exaggerate and false propaganda, actually their machines could not to work continuously even 2 hours . Be careful if you come across.
