Cable Cardboard Copper Machine Wire E-Waste Fabric Double Roll Shredder

Product Description

Product Description

Model	WPT1200/450
Main Shaft Length(mm)	1200
Main Shaft Tactical Diameter(mm)	450
Speed(rpm)	40
Rotor Blades (pcs)	112
Fixed Blades (pcs)	4+4
Motor Power(kw)	75+75
Hydraulic Power(kw)	1.5
Screen Mesh Diameter(mm)	50-100
Cutting Chamber Diamension (mm)	1210*1490
Overall Dimension (mm)	4500*2180*2650
Weight(kg)	10000

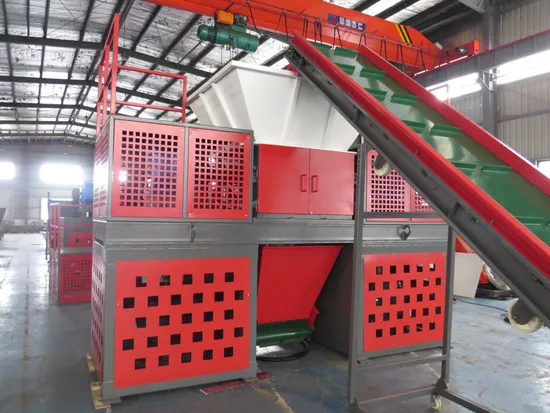

Detailed Photos
Advantages:
1) The double-roller design has a tearing effect on crushed materials with higher efficiency, suitable for easy-winding materials
2) The rotary can be used for multiple times by changing the angle according to the wear condition, saving cost
3) The bearing house were installed outside the cabinet, sealed by rubber ring to prevent the crushed material into the I bearing box, ensure a longer service life
4) The hydraulic system could achieve fast screen exchanging, short-time maintenance through automatically opening and closing, adjust the pushing speed in according with different pushing speed to avoid overload Application
Application:
Film
Bag container, woven bag
Paper products
Packing strap
More Products

Company Profile

FAQ

1.What information shall I provide when I request for quotation?
Information should be including parameters or technical requirements, such as: processing materials, output size, capacity, etc.
2. Are you trading company or manufacturer?
We are ISO9001 certified manufacturer focus on fabricating solide waste recycling machine since 1995, address: No.3 Geely Avenue, Toumengang New Street, Linhai, Taizhou 317000, Zhejiang China.
3. What kind of products do you offer?
We have four main categories of products, shredder, plastic crusher, plastic recycling and washing line, plastic granulator andauxiliary equipment.
4.What are the applications of these products?
Our products are wildly used in shredding and crushing of plastic woven bags, plastic film, PA/PC plastic block, household appliance shells and inner tanks, plastic pipes, plastic containers, wastepaper, straw, wood, urban household garbage, medical waste, electronic waste and waste metal, etc. And waste plastic recycling and washing and plastic granulation.
5. Do you support product customization?
Yes, not only we provide customized service but also provide solutions to our customer.
